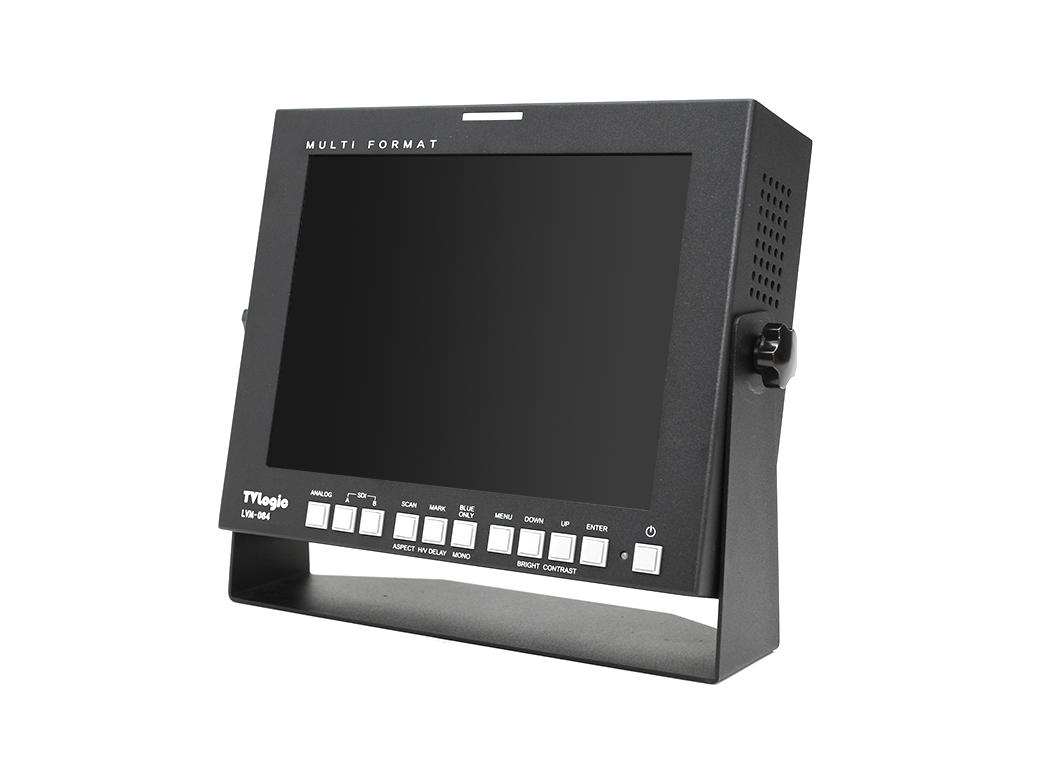

product img

LVM-091W-3G : Versatile and Full-Featured Multi-Format LCD Monitor

This updated version of our versatile 9” broadcast production monitor features a high contrast (1000:1) 960x540 anti-glare hard-coated LCD panel designed for minimum glare and accurate HD downscaling (exactly ½ 1920x1080).

Additional features include Waveform, Vectorscope, Focus Assist, 1:1 Pixel Mode, a full range of selectable frame Markers, mattes and colors, Auto-Color Calibration Support, and more.

LVM-091W-3G

Choice:

Product Highlights
• 9” 960 x 540 (16:9) Resolution

• Supports TVLogic Color Calibration Utility for proper
color alignment
• GPI (RJ45)
• Timecode Display
• Waveform/Vectorscope (Y/ Cb/Cr, Wide Type, Line
Waveform)
• Range Error
• Marker
• User Aspect
• Blue Only/Mono
• H/V Delay
• UMD support (ANC, Manual, Dynamic & User)
• Closed Caption: CEA- 608/708 (SDI), Line 21, ANC
• Monitor control using RS422
• Aluminum Die-cast Case
• Focus Assist
• Built-in V-Mount


Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

H/V FlipH/V FlipH/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

UMD

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

Display Spec.

 Size  9"
 Resolution  960 X 540 (16 : 9)
 Pixe Pitch  0.207mm
 Color Depth  16.7M
 Viewing Angle  170°(H) / 170°(V)
 Luminance  400cd/m2
 Contrast Ratio  1000:1
 Display Area  199(H) x 112(V) mm
Input
 3 X BNC  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X DVI  DVI Input
Output
 1 X BNC  HD-SDI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
Other Functions
 REMOTE   TVLogic’s specification
 USB
 Ethernet
 Conversion   SDI-to-SDI,
Options
  Camera Mount Ball Head,  Carring Case,  External Acrylic Filter,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,  V-Mount
