SWM-320A : A brand-new Studio Wall Monitor

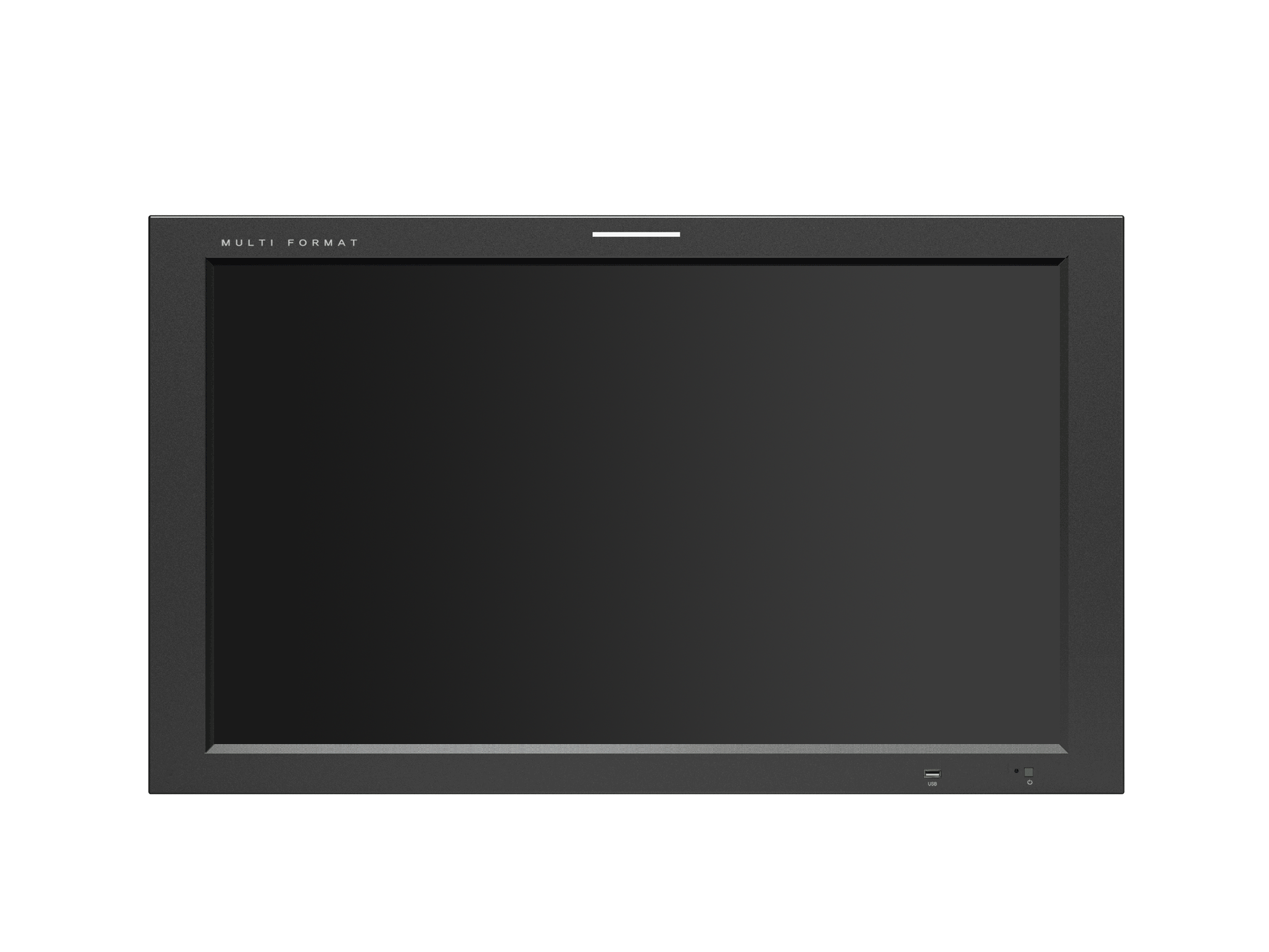

SWM series monitors are newly designed for the best match for the studio walls. A clean bezel with only a power button and a small indication lamp secures the best monitoring conditon for the users. Along with the traditional interfaces of SDI, HDMI and DVI, the optical fiber interface has been added for the user's choice. It supports video formats up to 3G-SDI and professionals features such as Marker, Timecode, Audio Level Meter, various CCs and UMDs.
SWM-320A

SWM-320A

Product Highlights
• 32” 1920 x 1080 (16:9) Resolution
• 3G-SDI Level A/B
• Audio LEVEL METER Display
• Blue Only
• Focus Assist
• H/V Delay
• MARKER
• Mono
• Range Error
• TIME CODE Display
• UMD
• User Aspect
• CC-608 ANC
• CC-608 LINE 21
• CC-708
• CC-KOR
• OP42
• OP47





3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect
Display Spec

 Size  32"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.364mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  500cd/m2
 Contrast Ratio  1300:1
 Display Area  698(H) x 382(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
 1 X SFP Module  SFP Module Input(Optional)
Output
 2 X BNC  3G-SDI A/B Channel Output
Input Signal
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 640×480 / 720×400 / 800×600 / 1024×768 / 1280×1024 / 1600×1200
 DVI DP  640×480/720×400/800×600/1024×768/ 1280×1024/1366×768/1600×1200/1920×1200
 DVI DH  1080p(24/25/30/50/60)/1080i(50/60)/720p (50/60)/480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio Out  -
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Marker,  Mono,  Time Code Display,  UMD,  User Aspect
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
 Stand,
Dimensions

- Main Body : 769.4 x 485.1 x 102.1 (mm) / 30.29 x 19.09 x 4.01(inch)
- Weight : 18 Kg
