LVM-070C : 7” Field Monitor

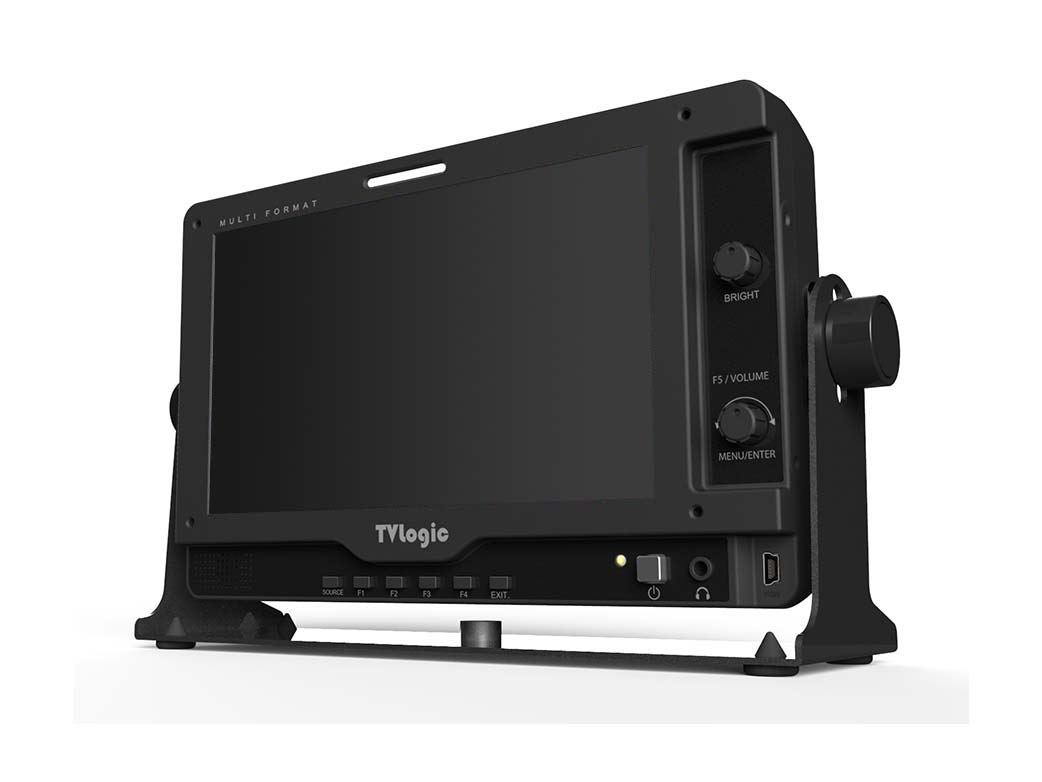

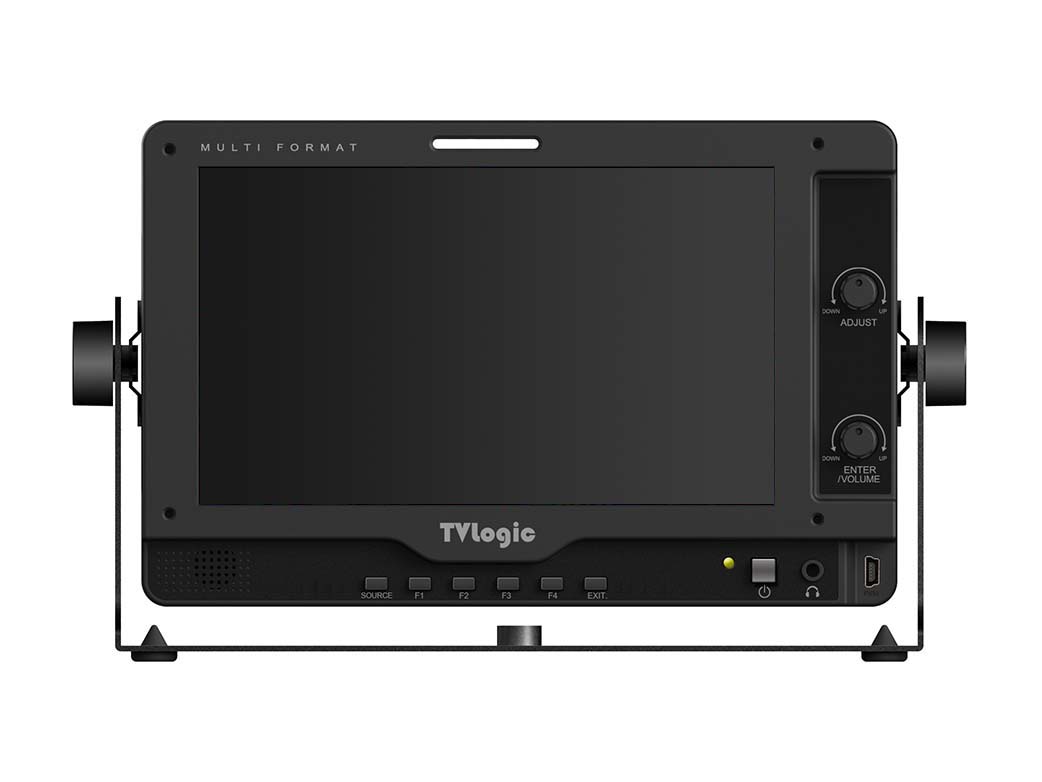

The LVM-070C is the reasonably priced field monitor with robust housing and pro features. With a high resolution 1024 x 600 (16:9) 7 inch LCD display, the LVM-070C accommodates multi-format analogue, 3G/HD/SD-SDI, and HDMI signal inputs. The many features of the LVM-070C include Waveform/vectorscope, Focuss Assist, Luma(Y') Zone Check and audio level meter, Camera Lut.
LVM-070C

LVM-070C LVM-070C LVM-070C

Choice:

LVM-070C

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Camera Lut.Camera Lut.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Max Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.
Max Brightness On/OffMax Brightness On/Off

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec.

 Size  7"
 Resolution  1024 x 600 (16 : 9)
 Pixel Pitch  0.15(H) X 0.15(V)mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  400cd/m2
 Contrast Ratio  800:1
 Display Area  153(H) x 90(V) mm
Input
 3 X BNC  Analog Input (Component)
 1 X BNC  3G-SDI A Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 3G SDI  2.97Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.
Closed Caption
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
 HDMI Bracket,  Camera Mount, Ball Head,  Carrying Case,  D-Tap Cable,  External Tally,  External Acrylic Filter,  Gold Mount,  Rack Mount Kit(Double),  Rack Mount Kit(Single),  Sun Hood,  V-Mount
Dimensions

[Release Notes]
Date : 16.04.14
LVM-070C [FPGA Firmware Update : V0001 / GPU Firmware Update : V0002 --> V0003]
1. Revised Sony S-Log1/2/3 Lut data

Date : 16.02.03
LVM-070C [FPGA Firmware Update : V0001 / GPU Firmware Update : V0001 --> V0002]
1. Added [OutputMode Select] feature.
2. Added [Focus Assist White] feature.
3. Added [Unstable Count] on factory menu
