TVX-H80
HDBaseT Extender for HDMI
Choice：
TVX-H80 : HDBaseT Extender for HDMI
- TVX-H80-Tx : Transmitter
- TVX-H80-Rx : Receiver
HDBaseT Extender is a device which transmits HDMI image signals to the maximum 100m.
Max. Resolution 4K, 3840x2160@30Hz
Maximum Pixel Clock 300MHz
Max. Transmission / Reception Distance (CAT5e)
- 1080P@60Hz, Deep Color : 100m
- 4K, 3840x2160@30Hz : 80m
HDCP Support
EDID Pass through
LED Indicate
- Power, Cable connection, HDCP Status
- TVX-H80-Rx : Receiver
HDBaseT Extender is a device which transmits HDMI image signals to the maximum 100m.
Max. Resolution 4K, 3840x2160@30HzMaximum Pixel Clock 300MHzMax. Transmission / Reception Distance (CAT5e)- 1080P@60Hz, Deep Color : 100m
- 4K, 3840x2160@30Hz : 80m
HDCP SupportEDID Pass throughLED Indicate- Power, Cable connection, HDCP Status
TVX-H80 : HDBaseT Extender for HDMI
Item |
Specification |
Minimum |
Maximum |
|---|---|---|---|
| Video | Resolution | 640x480@60Hz | 3840x2160@30Hz |
| Pixel Clock | 13.5 MHz | 300 MHz | |
| Transmission Distance(CAT5e) | 1080P | 80 meter | 100 meter |
| 4K | 80 meter | 80 meter | |
| Power | Power (DC) | 4.5 V | 5.5 V |
| Current | 0.8 A | 1.2 A | |
| Temperature / Humidity | Working Temperature | 0 °C | 60 °C |
| Storage Temperature | -30 °C | 70 °C | |
| Working Humidity | 0 %RH | 85 %RH | |
| Storage Humidity | 0 %RH | 95 %RH | |
| Connect | Ethernet | 8 Pin RJ-45 Female Connector | |
| HDMI | HDMI Female Connector | ||

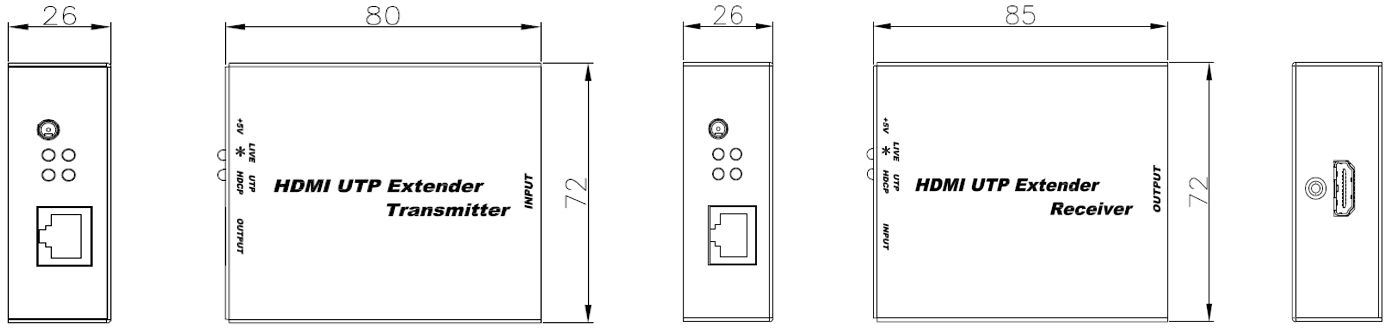

| Dimensions | W72xD85xD26 | ||
TVX-H80 : HDBaseT Extender for HDMI
