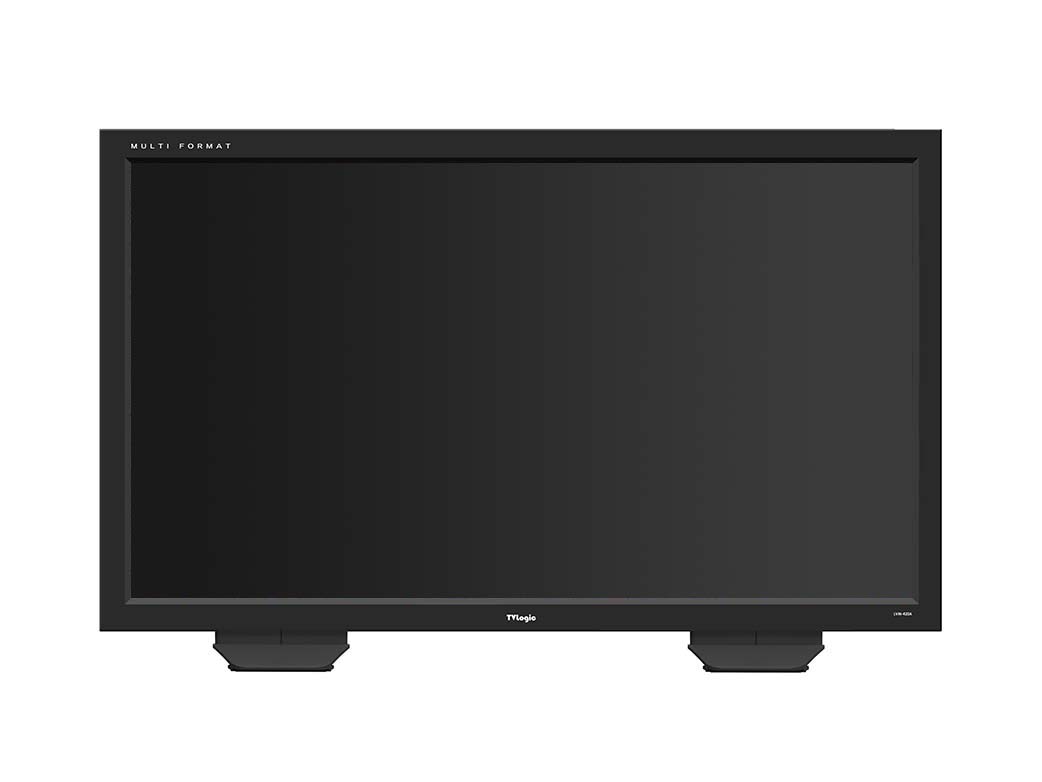

LVM-420A : 42” 1920 x 1080 Native HD LCD Monitor
The LVM-420A features a 1920 x 1080 native panel coupled with 3G/Dual-Link support and TVLogic’s powerful scaling engine to give you the best picture quality for both HD and SD Video sources. Additional features include automatic color alignment and HDCP decryption. It is an ideal solution for broadcast, post production and QC applications..jpg)
Display Spec
Input
Output
Input Signal
SDI Input Signal Formats
Audio
FPGA Functions
Closed Caption
Calibration
Other Functions
Options
Dimensions
- With stand : 985 x 24.8 x 255 (mm) / 38.78 x 24.88 x 10.04 (inch)
- Weight : 30kg / 66.13lbs
| Size | 42" |
| Resolution | 1920 X 1080 (16:09) |
| Pixel Pitch | 0.4845mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 450cd/m2 |
| Contrast Ratio | 4000:1 |
| Display Area | 930.24(H) x 523.26(V) mm |
| 3 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
| 3 X BNC | Analog Output (Component) |
| 2 X BNC | 3G-SDI Output |
| Analog | Composite / S-Video / Component / RGB |
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/160 0x1200 |
| DVI Analog | 640x480/720x400/800x600/1024x768/1280x1024/ 1600x1200/1920x1080 |
| DVI DP | 640x480/720x400/800x600/1024x768/1280x1024/ 1600x1200/1920x1080/1920x1200 |
| DVI DH | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) |
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) |
| SMPTE 372 | Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
| 1:1 Pixel Mapping Modes for SD/HD, Blue Only, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector |
| CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47 |
| TVLogic Color Calibration Utility |
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
| Carrying Case, |
- Main Body : 985 x 577.9 x 96.4 (mm) / 38.78 x 22.75 x 3.79 (inch)
Basic Accessory
Optional Accessory
