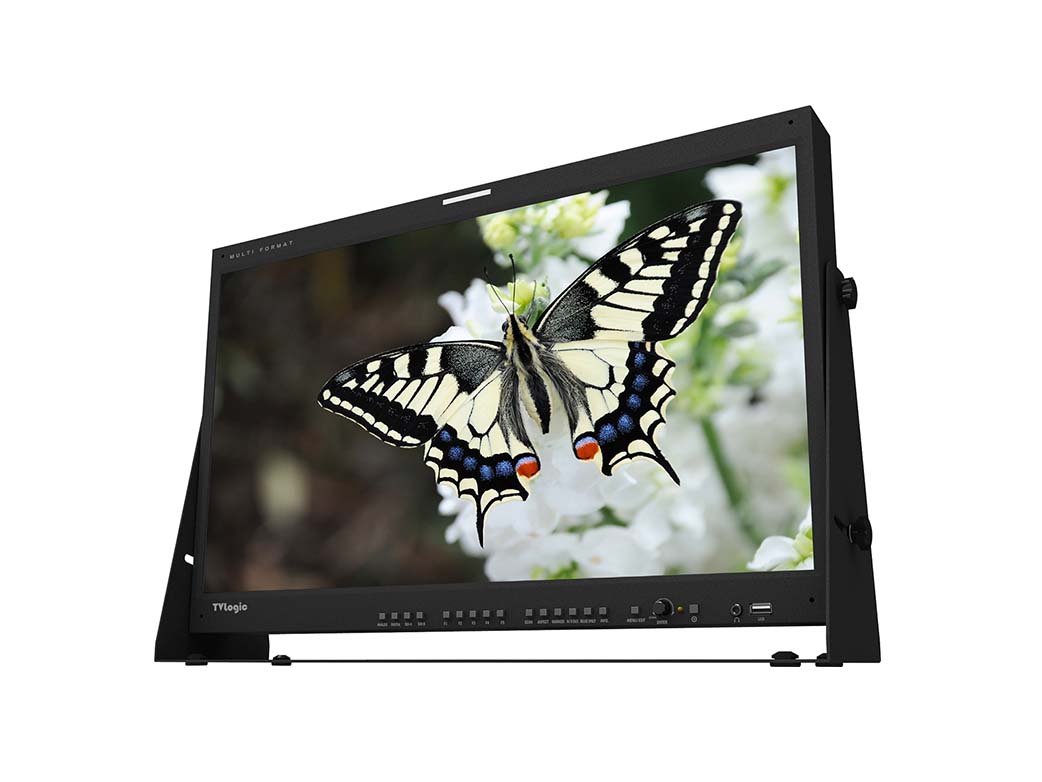

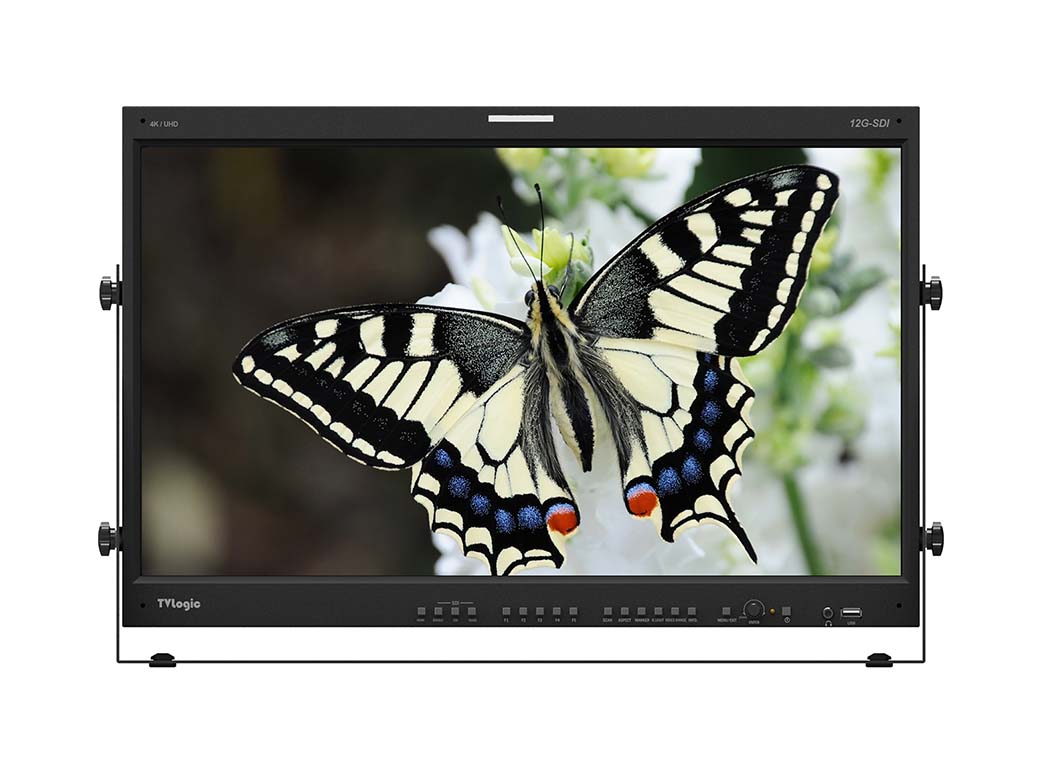

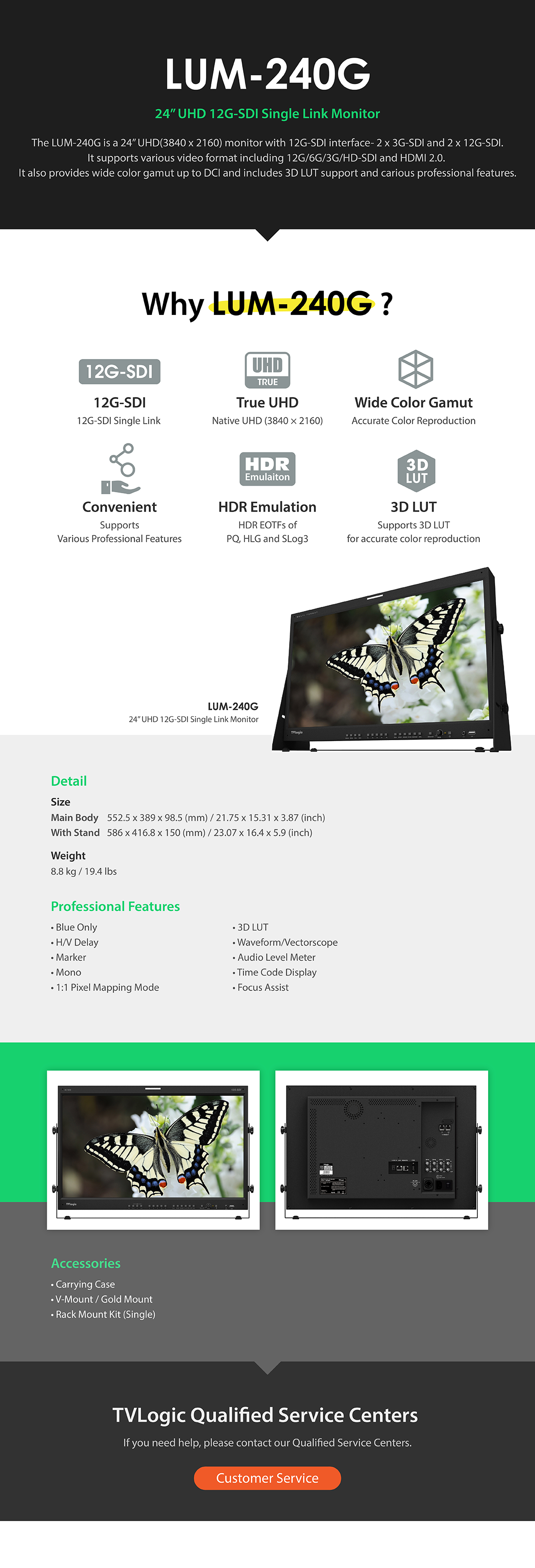

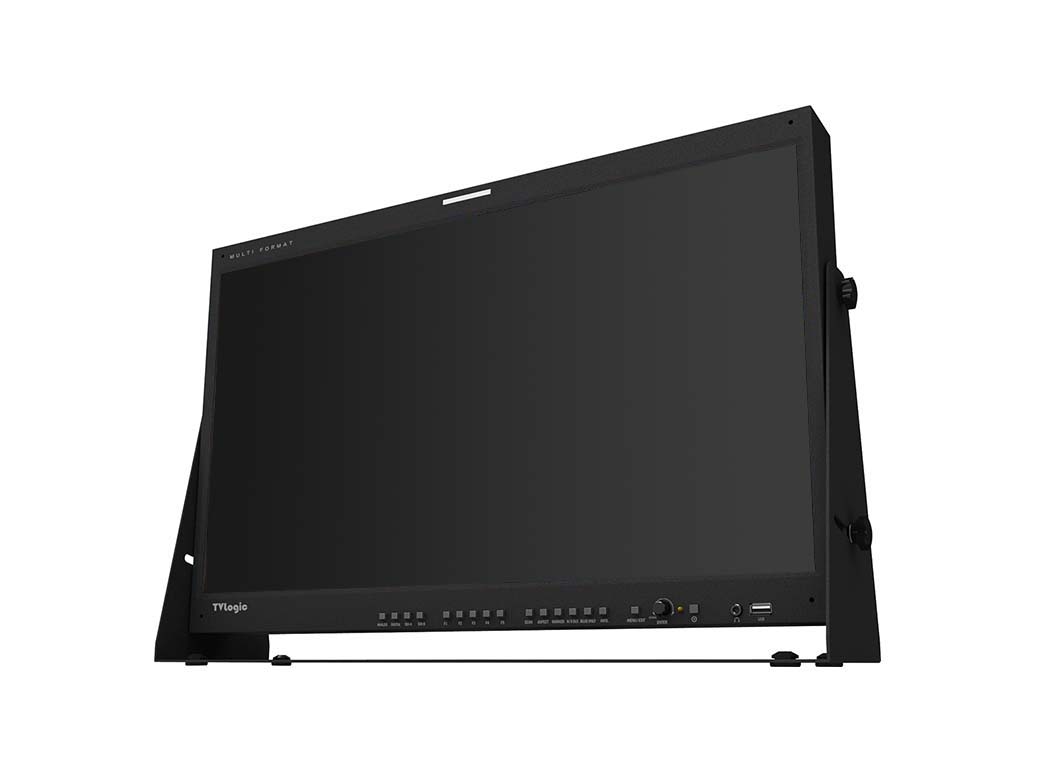

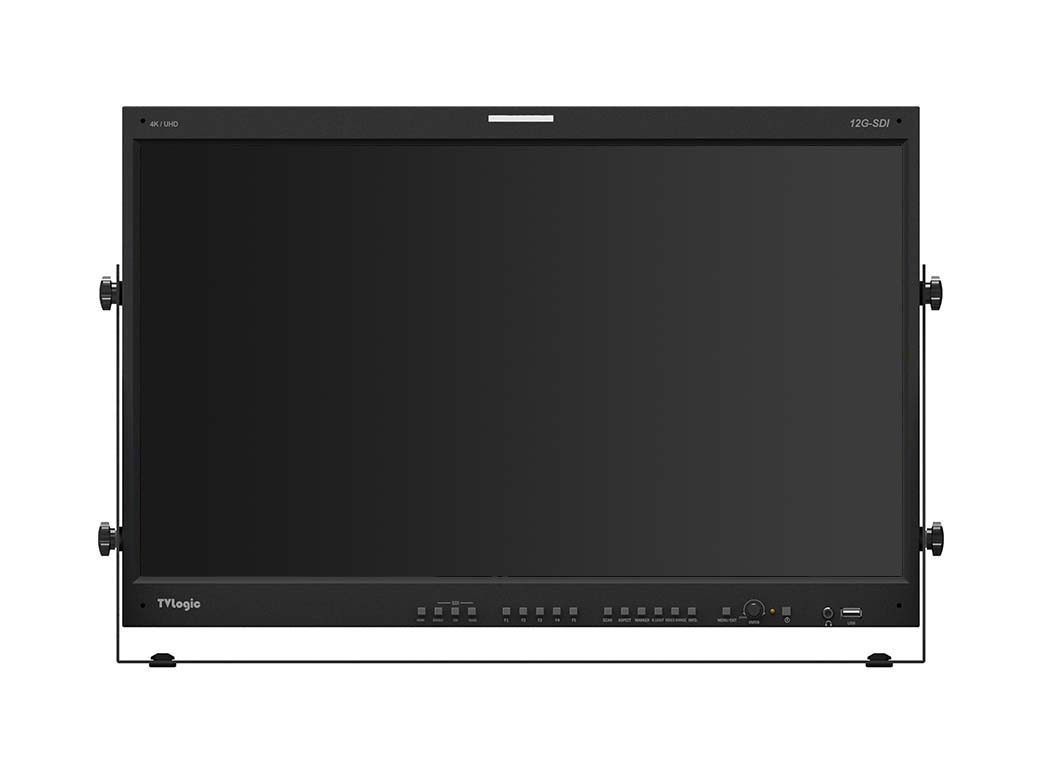

LUM-240G : 24” UHD 12G-SDI Single Link Monitor

Whether you are capturing HD, 2K, or UHD the LUM-240G should be part of your workflow. The ability to connect to 3G, 6G and 12Gig links without compromise, provides you with confidence throughout the acquisition and post path.

The LUM-240G is a 24’‘ 4K(3840×2160) monitor with 12G-SDI interface - 4×3G-SDI / 2x6G-SDI & 12G-SDI. The LUM-240G supports various video formats including 12G/ 6G/ 3G/ HD-SDI and HDMI 2.0. The LUM-240G provides wide color gamut up to DCI and includes 3D LUT support and a full feature set.

The LUM series is an integral part of scores of productions. The LUM 240G brings to the discerning user support for the latest 4K capture modes. The key features include wide color gamut, color accuracy, up to 12G SDI support, HDR mode and waveform support.
LUM-240G

LUM-240G LUM-240G LUM-240G

Choice:

LUM-240G

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector
Display Spec.

 Size  23.8"
 Resolution  3840 x 2160 (16 : 9)
 Pixel Pitch  0.137mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  350cd/m2
 Contrast Ratio  1000:1
 Display Area  527(H) x 296(V) mm

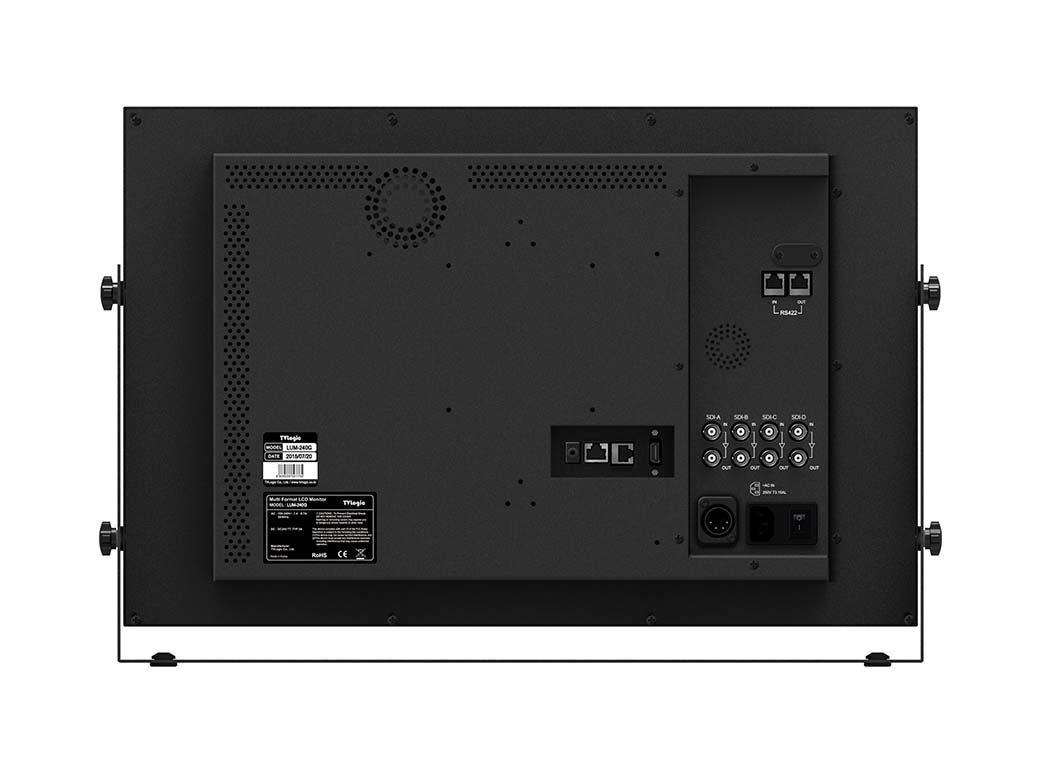

Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input (HDMI 2.0)
Output
 4 X BNC  12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)
Input Signal
 3G SDI  2.974Gbps
 12G SDI  11.880Gbps
 HD SDI  1.489Gbps
 HDMI  480p / 720p / 1080p / 2160p
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54)
 SMPTE 296  720p (60/59.94/54)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF)
 SMPTE 260  47.95/48/50/59.94/60p)
Audio
 Audio In  Analog Stereo
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Marker,  Mono,  Time Code Display,  Waveform/Vector,  SingleMode
Closed Caption
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet
Options
  Carrying Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount
Dimensions


LUM-240G

Basic Accessory

AC Power Cord Stand-24 USB Cover

Optional Accessory

OPT-AND-24G RMK-24 V-Mount-250 V-Mount-250C AB-Mount-250(AP)G-Mount-250(EMEA) CC_24D

[Release Notes]
Date: 20.04.27
[LUM-240G [FPGA Firmware Update V37 -> V40]
1. Decreasing Video processing delay

Date: 19.11.01
[LUM-240G [CPU Firmware Update : V111_01R -> V111_02R / GPU V0007 -> V0009 / FPGA V29 -> V33]
1. Debugging CC malfunctioning on Latin letters(Unicode), musical notes
2. Supporting new format <12G-SDI 2160p30/25/24, RGB 8/10/12bit>
3. Debugging issue on no image when changing input ports(ex. SDI <-> HDMI / switching SDI format) after running Camera LUT

Date: 19.10.17
[LUM-240G [CPU Firmware Update : V110 -> V111_01R / GPU V0007 -> V0008]
1. Adding Backlight User (calculated: Preset, Customs: User)
2. Available to Change the Video range in DCI-P3 Preset mode (not on HD and UHD).

Date: 19.07.30
[LUM-240G [CPU Firmware Update : V109 -> V110 / GPU V0006 -> V0007]
1. Locking up Color Temp in Preset mode (Color Standard HD, UHD, DCI-P3, PQ, HLG, SLog3)
2. Locking up Video Range in SDR preset mode(Color Standard HD, UHD, DCI-P3)
3. Improving sync error symptoms
4. Improving Error setting color temp when changing color STD

Date: 19.06.13
[LUM-240G [CPU Firmware Update : V108 -> V109]
1. Adding forced LUT Load feature during power on
2. Improving LUT Load error when switching input from a non-signal state
3. Improving Function Key Gamma error
4. Improving Bias Control error
