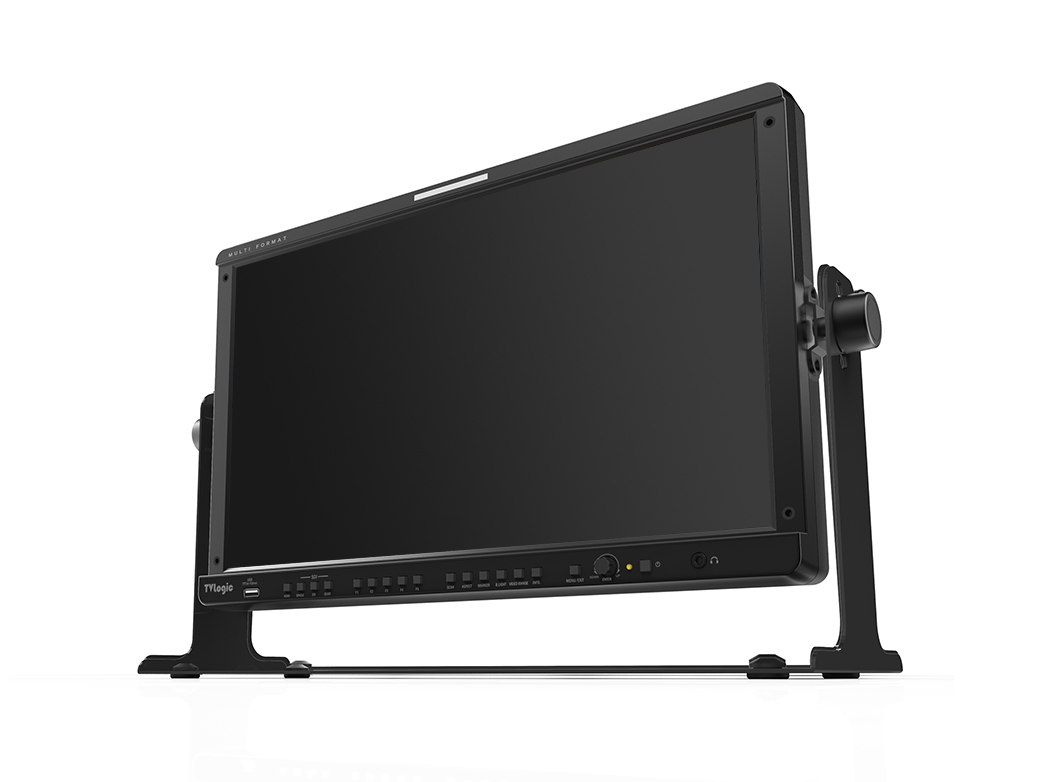

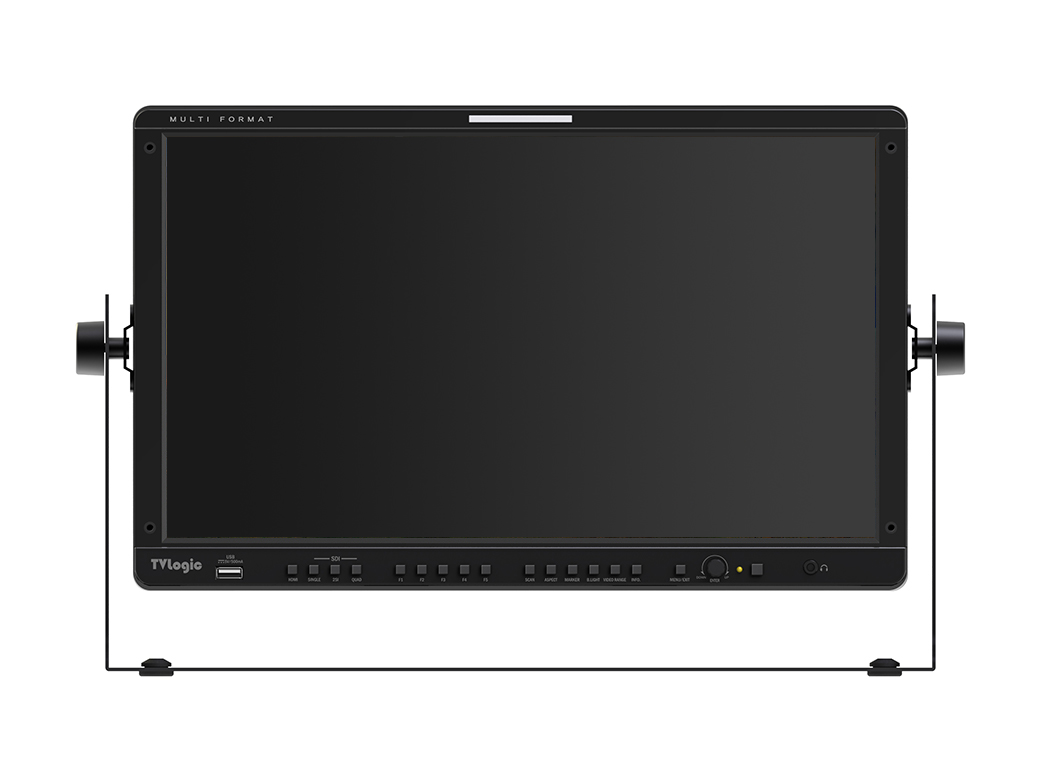

LVM-171A : A multi-purpose 17” Full HD Monitor.

The LVM-171A is the Full HD version of TVLogic's 17inch montoring solutions. This unit features a true 16:9 aspect ratio LCD panel with 1920x1080 resolution and 10-bit video processing performance allowing for faithful color reproduction and video scaling performance.
LVM-171A

LVM-171A LVM-171A LVM-171A

LVM-171A

Display Spec

 Size  16.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.1905mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  450cd/m2
 Contrast Ratio  1500:1
 Display Area  366(H) x 206(V) mm
Input
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  3G-SDI Output
Input Signal
 Analog  CVBS / S-Video / Component Video / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  640x480/720x400/800x600/1024x768/1280x768/128 0x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50)
 DVI Analog  640x480/720x400/800x600/1024x768/1280x1024/ 1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1080p(23.98/24/25/30/50/60)/ 1080i(50/59.94/60)/720p(50/60)/480i(60)/480p(60)/ 576i(50)/576p(50)
 DVI DH  1080p(24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  Carrying Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  Sun Hood,  V-Mount
Dimensions

LVM-171A

Basic Accessory

AC Power Cord Stand-17 USB Cover

Optional Accessory

RMK-165 OPT-AND-165 OPT-AF-165 V-Mount-17C V-Mount-17 AB-Mount-17(AP)G-Mount-17(EMEA) Hood-175W(AP)Hood-175(EMEA) CC-175

[Release Notes]
Date : 19.03.25
LVM-171A [GPU Firmware Update : V0006 -> V0007]
1. Improved the thru-out issue.

Date : 18.07.31
LVM-171A [GPU Firmware Update : V0005 -> V0006]
1. Added a feature to set [Time Code] location.

Date : 17.05.12
LVM-171A [GPU Firmware Update : V0004 -> V0005]
1. Fixed a bug which causes signal lost

Date : 17.04.26
LVM-171A [GPU Firmware Update : V0004 -> V0005]
1. Can select HDMI by Function Key

Date : 17.03.02
LVM-171A [GPU Firmware Update : V0002 -> V0003]
1. Can select SDI-A, SDI-B by Function Key

Date : 16.07.29 LVM-171A [FPGA Firmware Update : V0001 -> V0002]
1. Debugged noise on 3G-SDI
