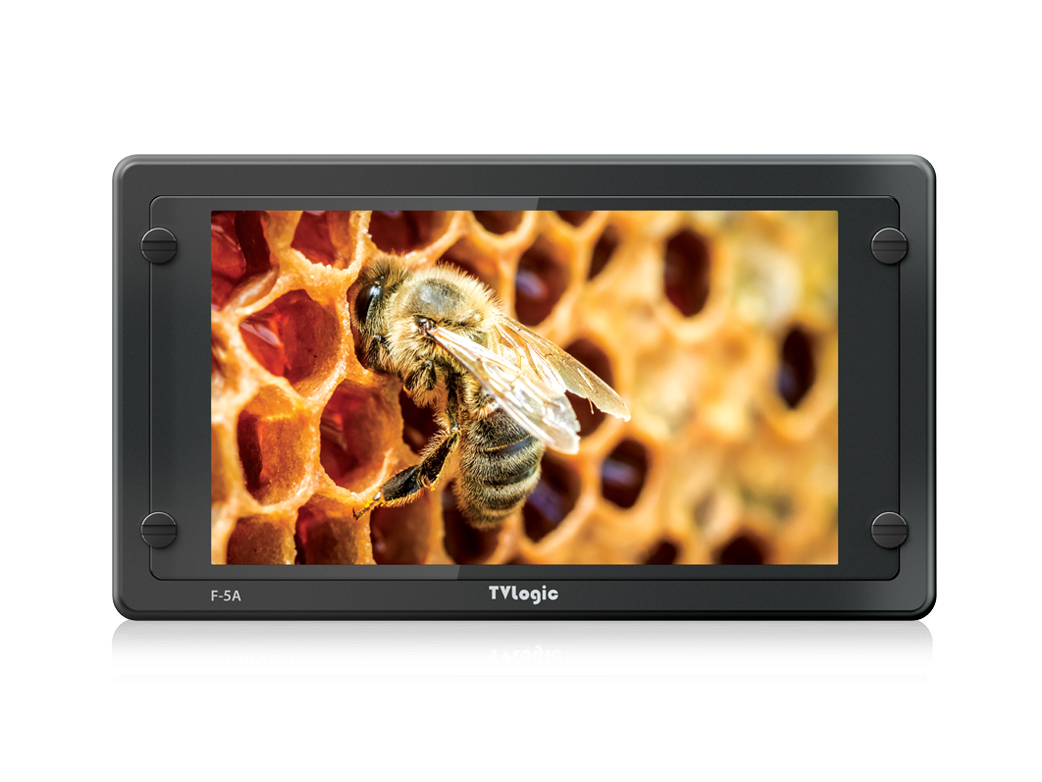

F-5A : 5.5’’ Full-featured Field Monitor with FHD IPS-LCD

The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.
F-5A

F-5A F-5A F-5A F-5A F-5A


5.5” Fully-Featured Field Monitor with
FHD IPS-LCD

The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.

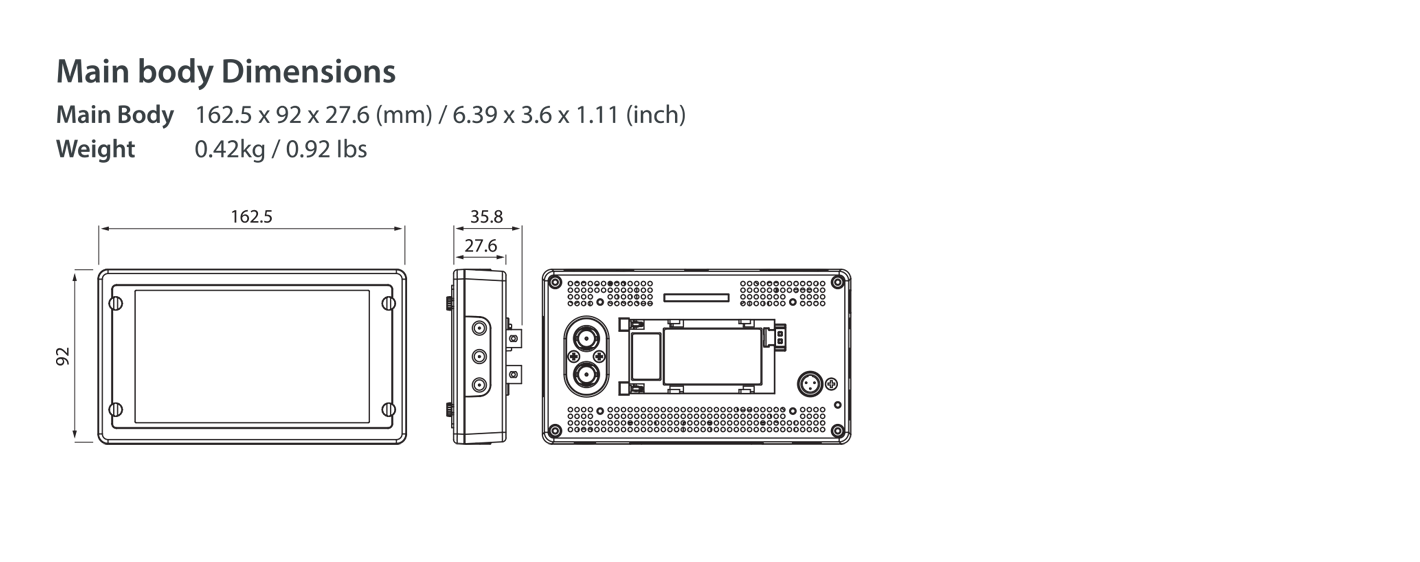

Main Body Dimensions
Main Body    162.5 x 92 x 27.6 (mm) / 6.39 x 3.6 x 1.11 (inch)
Weight            0.42kg / 0.92 Ibs


Product Highlights
• 5.5” Full HD Resolution (1920×1080)
• HDMI ↔ SDI Cross Conversion
• HDR (PQ, HLG, S-Log3)
• Custom 3D LUT Import
• ARRI Metadata
• Excellent Sharpness
• Peaking Boost
• Waveform / Vectorscope
• H/V Flip
• Auto Flip
• Split Zoom
• Focus Assist
• Anamorphic Desqueeze
• Zoom
• Luma(Y’) Zone Check
• Camera LUTs support
• Built-in battery bracket (Sony L-series)
• Grid

Optional Accessories

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

Anamorphic Desqueeze

Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.
Anamorphic DesqueezeAnamorphic DesqueezeAnamorphic Desqueeze

ARRI Alexa Camera Metadata over SDI

Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.
ARRI Alex Metadata over SDIARRI Alex Metadata over SDI

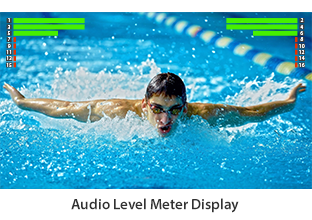

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Camera Lut.Camera Lut.

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
Custom 3D LUT Import

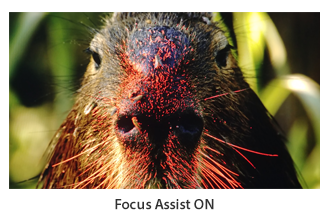

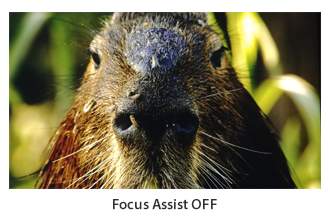

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

H/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
H/V FlipH/V FlipH/V Flip

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Max Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.
Max Brightness On/OffMax Brightness On/Off

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Sleep Mode

Sets the LUMINANCE to the minimum value when the time set in the still image output is exceeded.

Split Zoom

Zooms the specified area sequentially.
Split ZoomSplit Zoom

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec

 Size  5.5"
 Resolution  1920 X 1080 (16:9)
 Pixel Pitch  0.0213(H) X 0.0639(V)mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  500cd/m2
 Contrast Ratio  1,000 : 1
 Display Area  122.7(H) × 69(V) mm
Input
 1 X BNC  3G-SDI Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Output
 1 X HDMI  HDMI Output
Input Signal
 3G SDI  2.970Gb/s
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (60/59.94/50/30/25/24/.23.98)/1080i(60/59.94/50)/720p(60/50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
Audio
 Audio In  Embedded Audio
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.,  Arri Camera Metadata
Closed Caption
Calibration
, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet
Options
 Battery Bracket, HDMI Bracket,  Camera Mount, Ball Head,  Carrying Case,  D-Tap Cable,  External Acrylic Filter,  Sun Hood,  L-Type BNC Connector ,
Dimensions


F-5A

Basic Accessory

TH-Mount-05 D-Tap-C OPT-AF-055A TH-Mount-F7H

Optional Accessory

BH-1(BH-056) BA-055E BA-055B BA-055N BB-055C BB-055P BB-055U BB-055E BB-055B D-Tap-S D-Tap-L HDMI BKT-055 Hood-F5A DC Power adapter1 CC-055
