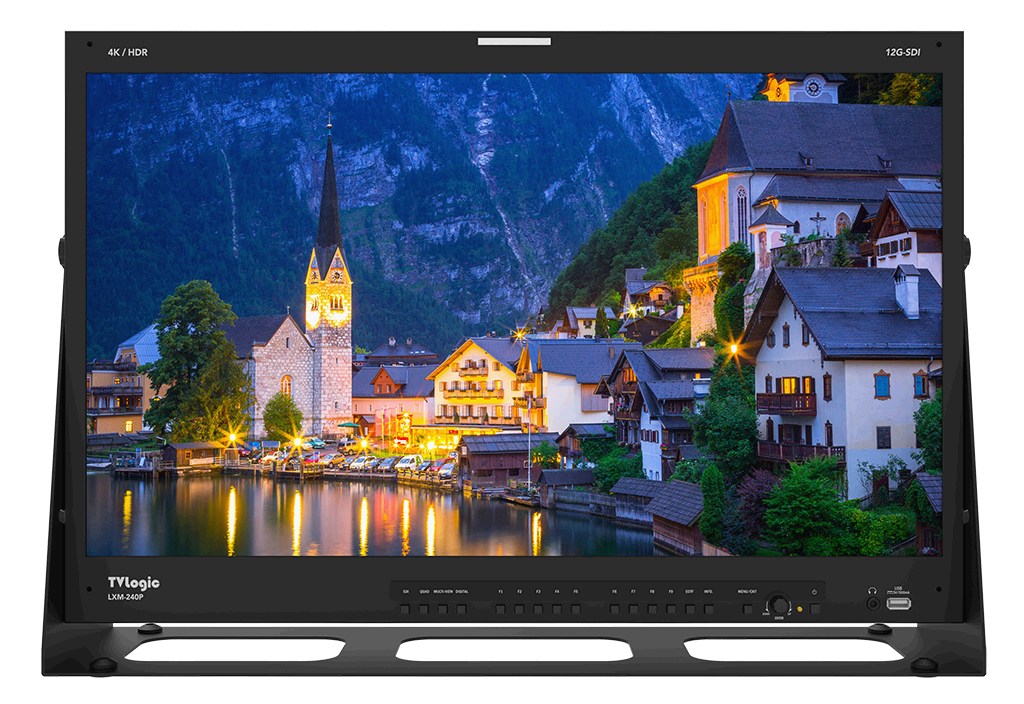

LXM-SERIES : Professional 4K/UHD HDR BroadMonitors with Extensive Features

The LXM series monitors are TVLogic's latest generation of 4K/UHD broadcast monitors incorporating innovative hardware and software solutions.


The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output. These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
LXM-SERIES

LXM-SERIES LXM-SERIES LXM-SERIES LXM-SERIES LXM-SERIES




The LXM series monitors are TVLogic's latest generation of 4K/UHD broadcast monitors incorporating innovative hardware
and software solutions.

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)




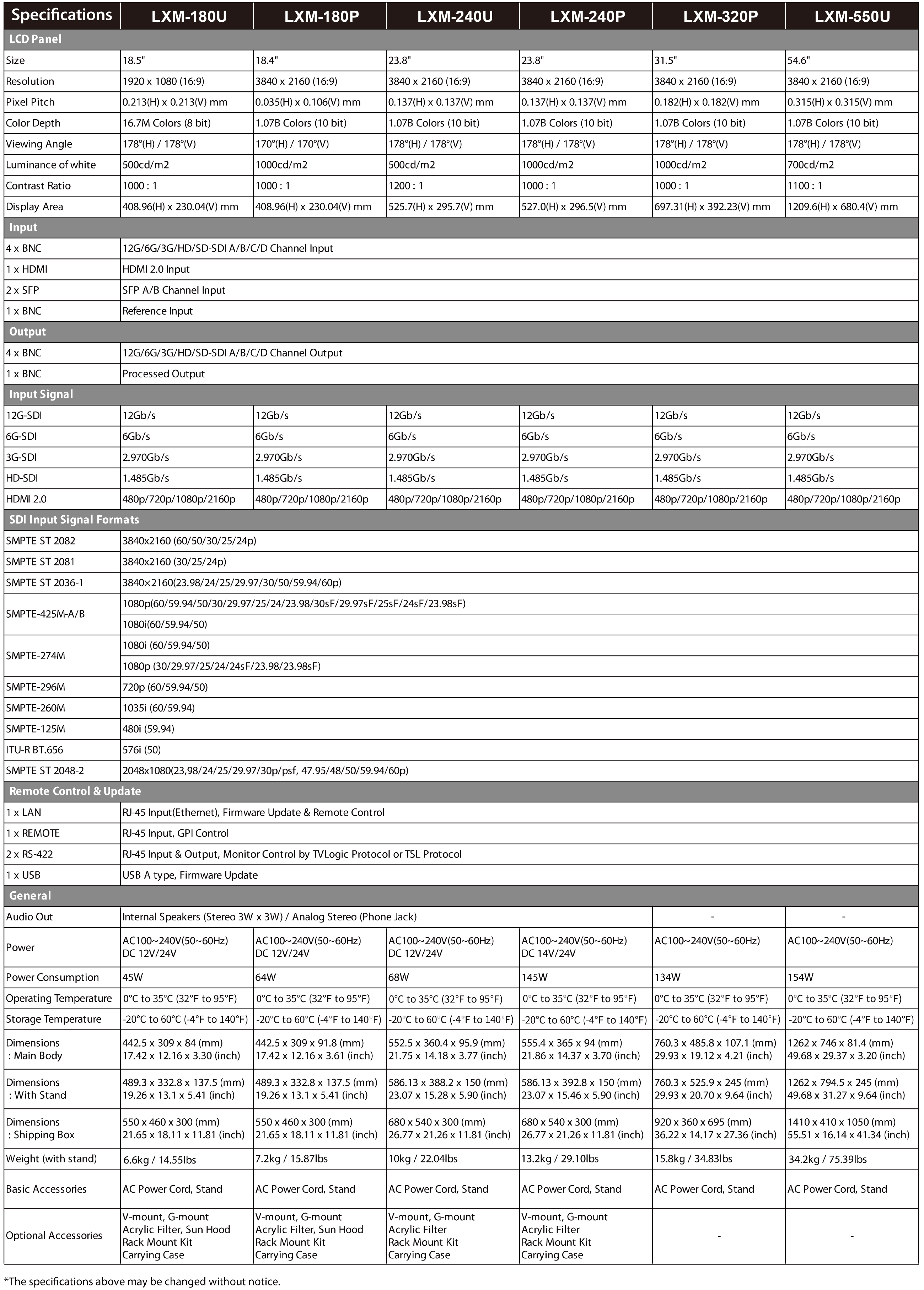

Product Highlights
• Peak Luminance 1000nits*
• HDR (PQ, HLG)
• Wide Color Gamut (DCI-P3 Coverage up to 98%)
• 1.073 Billion Colors**
• Display Resolution 3840 x 2160**
• Custom 3D LUT Import by USB Flash Drive
• Built-in Camera LUTs
• 4 x 12G-SDI Input and Loopout
• 3G-SDI Quad-Link Input and Loopout
• Reference Input
• Dual SFP Input
• HDMI 2.0 Input
• Quad-View Display
• Picture-by-Picture Display
• Processed Monitor Output
• Various Conversion Output
• Quad Link 12G Input to Single Link 12G Output
• Auto Detection of SDI Payload ID
• Waveform (YCbCr, RGB)
• Vector Scope
• Histogram
• Pixel Color Info Display
• Closed Caption (CC-608, CC-708, OP47)
• Fast Mode
• 16Ch Audio Level Meter
• Audio Phase Meter
• Image Capture & Overlay
• Video Range
• Blue/Mono Only
• H/V Delay
• H Flip, V Flip
• Timecode Display
• Marker
• Luma(Y') Zone Setting
• Focus Assist
• Range Error
• Scan
• User Aspect
• Dynamic UMD
• Tally
• Firmware Update by Ethernet
• Remote Control via Ethernet, RS-422, GPI
  * LXM-180P, LXM-240P, LXM-320P : 1000nits
 **
LXM-180U : 16.7M colors, 1920 x 1080


Key Features

 HDR Monitoring
The LXM Series monitors support various HDR EOTFs, including PQ and HLG, which allow the monitors to display HDR content accurately and faithfully.


• Accurate Color Reproduction with Wide Color Gamut
The LXM Series monitors offer exceptional color performance, with a DCI-P3 color space coverage of 98%* and the ability to display 1.073 billion colors*.
TVLogic's advanced calibration software ensures accurate color reproduction, resulting in precise and consistent color output.
(*Some models cover less than DCI-P3 98% or 1.073B colors.)


• Custom 3D LUT Import & Processed Output
With the LXM Series monitors, users can load and apply their own 3D LUT files, generated by color grading tools.
The monitors also support output of the custom 3D LUT applied image to another monitor through an independent port, providing additional flexibility in color management and monitoring.

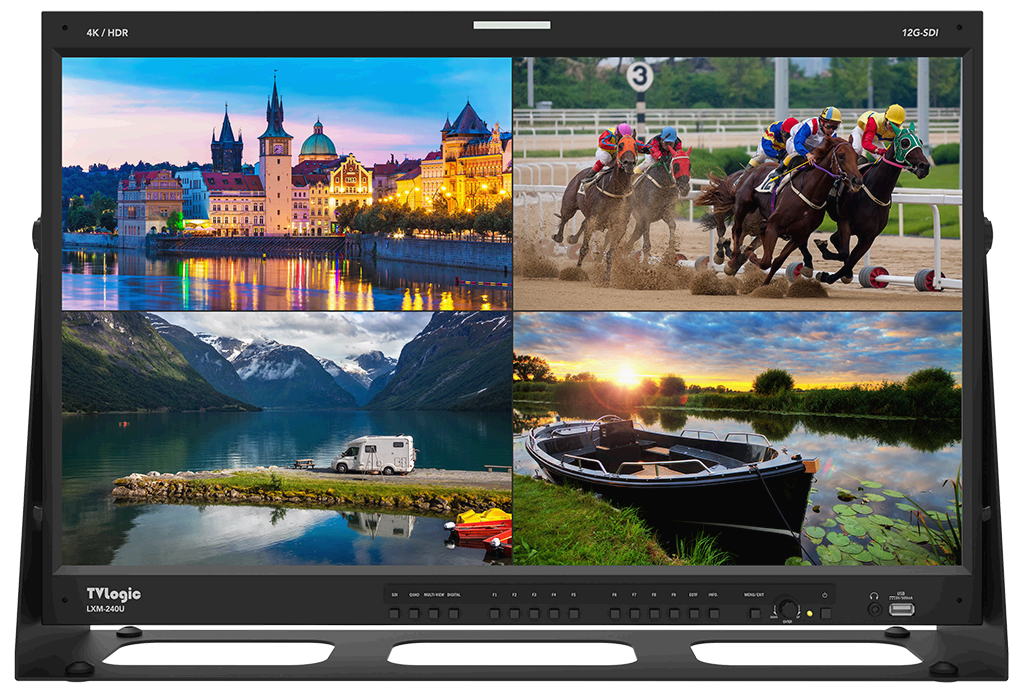

• Quad-View Display
The LXM Series monitors support quad view display, allowing up to four different video inputs to be shown on a single screen simultaneously.
These monitors can display a variety of input combinations, including SDI, HDMI, and SFP, providing maximum flexibility and versatility.



• Picture-by-Picture Display
The LXM series monitors offer an extremely useful and advanced PBP feature that enables side-by-side monitoring of a single input image: SDR on one side and HDR on the other. Additionally, each image can display Waveform and/or VectorScope data.
This feature also supports side-by-side monitoring of two different input sources.



• Auto Detection of SDI Payload ID
This function enables the LXM monitors to automatically detect EOTF and Color Space information from the video Payload ID using SMPTE ST 352 when an SDI signal is connected, and subsequently adjust the settings accordingly.


 Image Capture & Overlay
This feature allows users to capture and save an image from the scene and subsequently overlay it onto the live view.
The opacity of the captured image can be adjusted during the overlay process.
This functionality proves invaluable for achieving scene matching when resuming the shot.




 Various Audio Monitoring Functions
The LXM series offers the various a udio monitoring tools such as Audio Level Meter, Audio Phase Meter.
The Audio Level Meter allows users to monitor the audio level up to 16 channels by pairing and grouping the audio channels. The level meter decay time, size, and position are adjustable.
The Audio Phase Meter shows how much the signal extends into the stereo field, and where the signal's energy is distributed in the stereo field by drawing a Lissajous pattern.


• Firmware Update via Ethernet
All LXM monitors can be connected to Ethernet, enabling convenient remote firmware updates over the network.
This feature makes it easy to keep your monitor up-to-date with the latest software enhancements and improvements.



 Fast Mode
This function can be used to minimize the de-interlacing processing time delay and improves the quality of fast moving and fine details under interlaced format.
It will not be effective under progressive format.
Bypasses deinterlacer, playing back 2 full fields per frame.
Also reduces signal processing delay for reduced audio/video delay.



• Various Scope - Waveform, VectorScope, Histogram
The LXM can display the input signal's Waveform, VectorScope, and Histogram. Both the Waveform and VectorScope offer multiple modes and can be shown simultaneously.
 Additionally, users can opt to display the Waveform of a specific selected line.



• Reference Input for Genlock
The LXM series monitors feature a Reference Input for genlock.
Genlock (generator locking) is utilized to synchronize multiple cameras.
It ensures that if the source is switched from one camera to another, the frame rate, color burst, and line rate remain consistent.
This ensures that viewers see the correct picture without distortion or delay. Genlock also ensures proper synchronization among multiple input videos, which is crucial in settings like television studios with multiple cameras.
