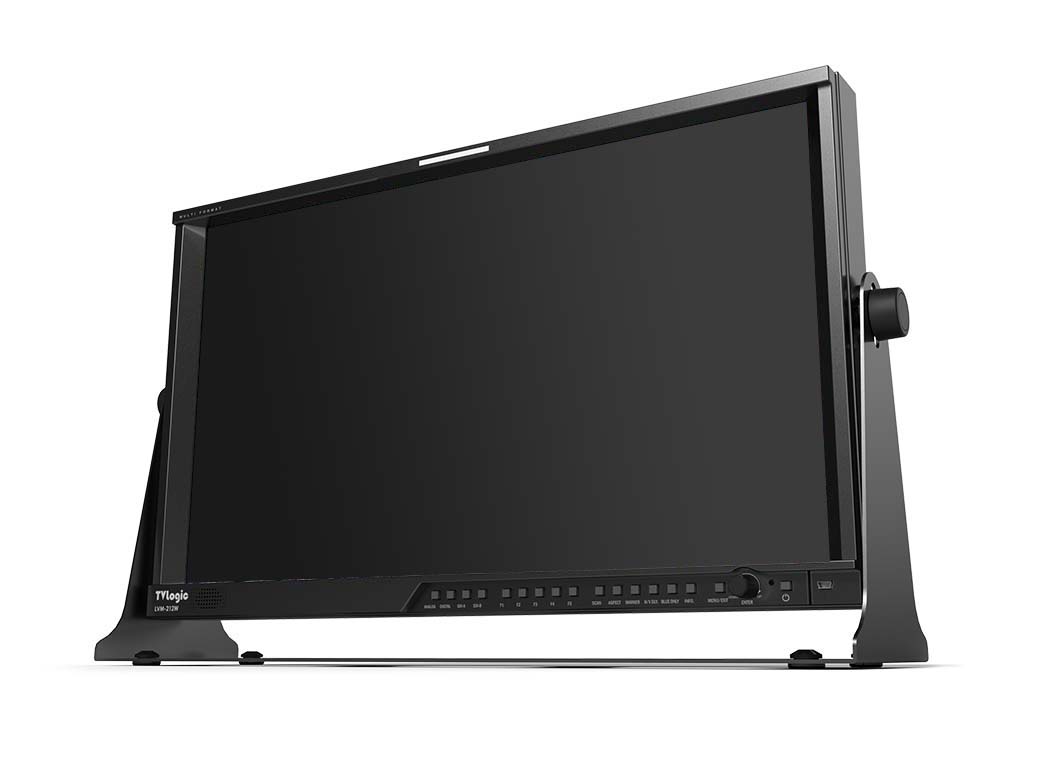

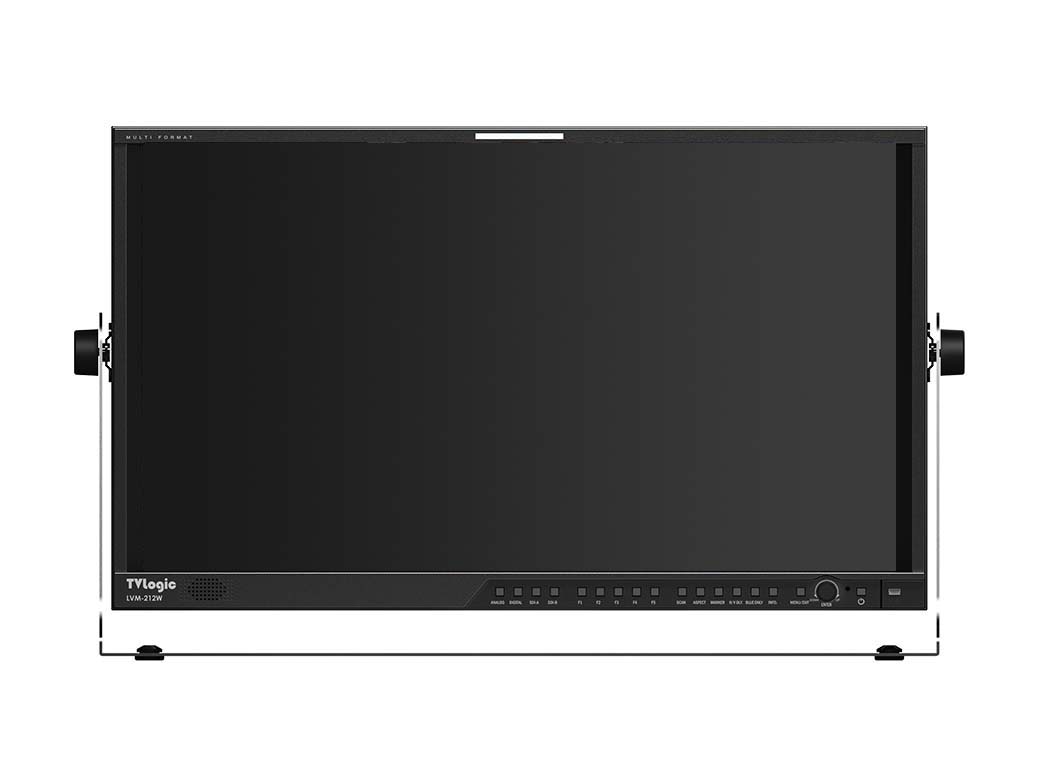

LVM-232W-A : 23” broadmonitor.

The LVM-232W-A is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features. Utilizing the state-of-the-art IPS LCD panel and combined with The TVLogic's excellent video processing technology, LVM-232W-A provides outstanding viewing angle with accurate colors and rich professional features.
LVM-232W-A

LVM-232W-A LVM-232W-A LVM-232W-A

LVM-232W-A

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec

 Size  23"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.2652mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  300cd/m2
 Contrast Ratio  1000:1
 Display Area  509(H) x 286(V) mm
Input
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 1 X BNC  Analog Output (Composite)
 1 X BNC  SDI A/B Selected Channel Output (Loop Through Out)
Input Signal
 Analog  CVBS
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1920x1080/1080p(24/25/30/ 50/60)/1080i(50/60)/720p(50/60)/480i(60)/ 480p(60)/576i(50)/576p(50)
 DVI Analog  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1920x1080
 DVI DP  640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1366x768/1920x1080/1080p(24/25/30/ 50/60)/1080i(50/60)/720p(50/60)/480i(60)/ 480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet
Options
  Carrying Case,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount
Dimensions

LVM-232W-A

Basic Accessory

AC Power Cord Stand-23

Optional Accessory

OPT-AND-23 RMK-23(AP)RMK-232(EMEA) V-Mount-232 V-Mount-232C AB-Mount-232(AP)G-Mount-232(EMEA) CC-232

[Release Notes]
Date : 19. 03.12
[LVM-182W/232W [MCU Firmware Update : V17, FPGA : V04 ]
1. Debugged the Scan 1:1 key error
2. Improved the SDI Through Out
3. Debugged the Tally error
4. Debugged the screen error with 3G Level B

Date : 18. 06.08
[LVM-176W/246W [MCU Firmware Update : V16]
1. Added Eco Saving Mode

Date : 17. 09.25
[LVM-176W/246W [MCU Firmware Update : V16]
1. Improved SD SDI Position

Date : 17. 06.29 [LVM-182W/232W [MCU Firmware Update : V14]
1. Added 4K 2Si payload.

Date : 16. 01.12
[LVM-182W/232W [MCU Firmware Update : V11]
1. Debugged to come up [No signal] when swithching a signal from Evertz router.
2. Activate [Unstable count] feature.
* [Unstable count] feature can be used to set switching timing on the monitor.

Date : 15. 04.01
[LVM-182W/232W [MCU Firmware Update : V10]
1. Added Audio Level Meter (8CH, 8CH Side, 4CH, 4CH Side)
Before : [Off]-[16CH(Hor.)]-[16CH(Ver.)]-[Off]
After : [Off]-[16CH(Hor.)]-[16CH(Ver.)]-[8CH]-[8CH Side]-[4CH]-[4CH Side]-[Off]

** When selecting 8C or4CH, activate to select Group.
- 8CH & 8CH Side : [G1+G2]-[G2+G3]-[G3+G4]-[G1+G3]-[G1+G4]-[G2+G4]
- 4CH & 4CH Side : [G1]-[G2]-[G3]-[G4]

Date : 14. 09.05
[LVM-182W/232W [MCU Firmware Update : V07]
1. Improved Audio Volume.
2. Support 1080p feeding Analog(RGB).
3. Add Focus Assist function on BLUE ONLY Key.

Date : 14. 04.30
[LVM-182W/232W [MCU Firmware Update : V06]
1. Activate Dithering function.

Date : 13.11.15
[LVM-176W [MCU Firmware Update : V03] LVM-176W/182W/232W [FPGA Update : FPGA_03]
1. Debugged vertical noise on the screen.
2. Debugged key malfunction when putting Menu key then Enter or Direction key.
[Caution]
The firmware of MCU(v03) can be used for LVM-176W, 182W, and 232W.
However, the firmware of FPGA(v03) is the only for LVM-176W.(file name: LVM-176_V03_R3_131112.rbf)
The next version of MCU(v04) will be combined all models.

Date : 13.07.23
[LVM-176W/182W/232W [MCU Firmware Update : V02] [FPGA Update : FPGA_02]
1. Debugged screen noise when feeding SDI signal(1080p(30))
2. Debugged error on Level Meter when turning on Audio Level Meter feeding HDMI signal.
3. Debugged showing channel error when turning on Audio Level Meter feeding HDMI signal.
4. Debugged mutted sound when turning on and off Soft Power feeding SDI and HDMI signals.
5. Debugged screen noise of colors when feeding 1080 24p/23.98p.(LVM-232W)
