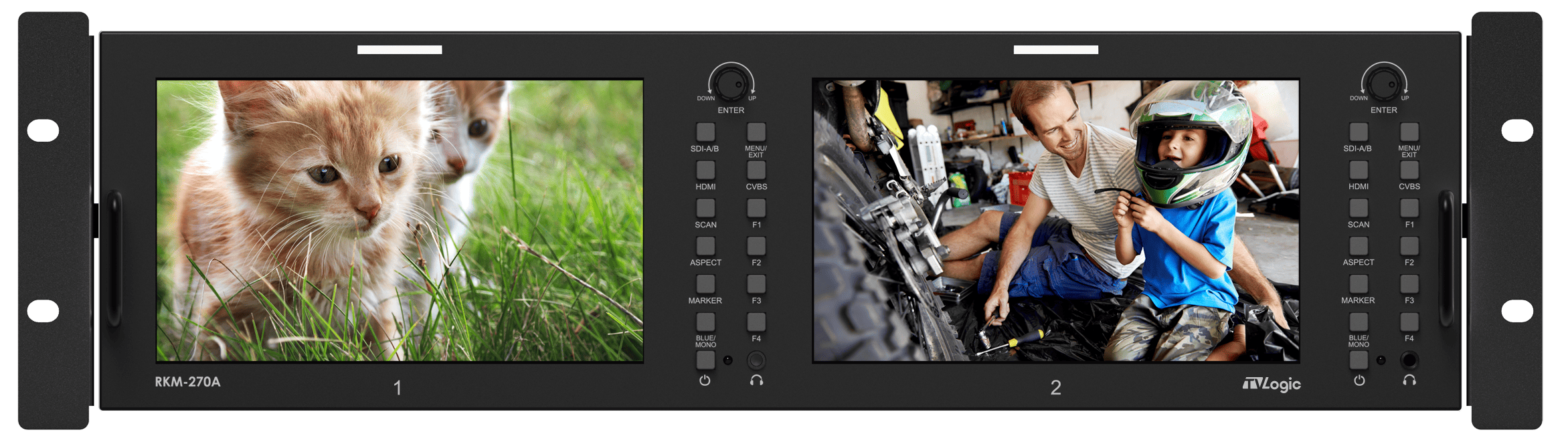

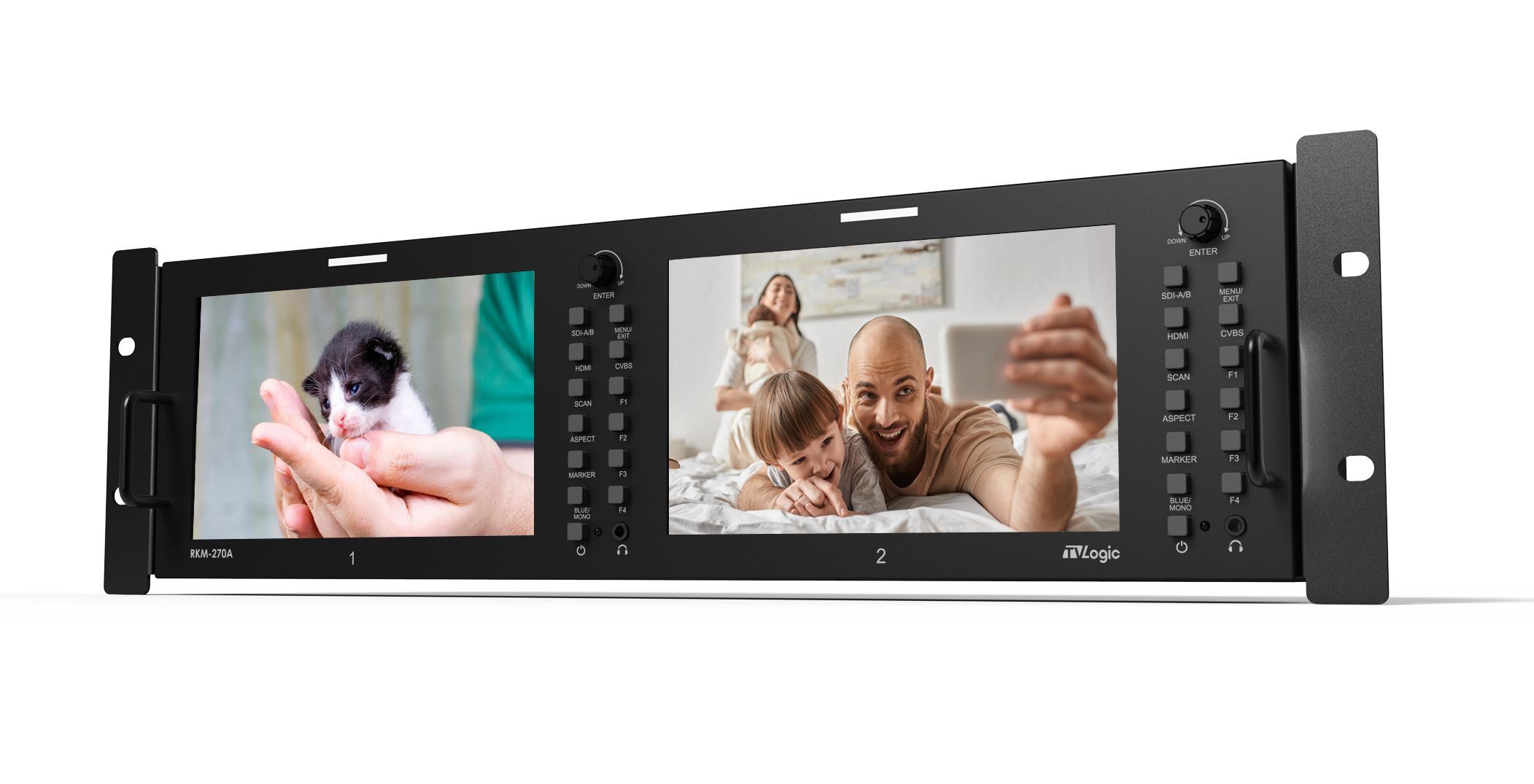

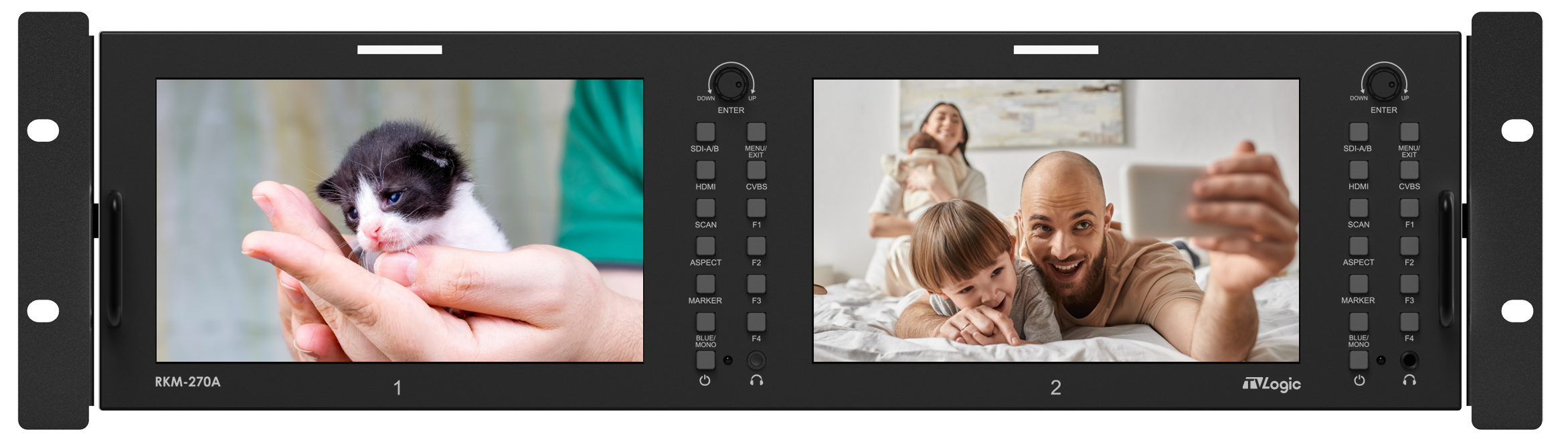

RKM-270A : Dual 7” LCD Rack Monitor

A rack-mount monitor with 2 × 7" LCD screens, which has the same high performance display as LVM-074W. Wide viewing angle IPS LCD with 1024 x 600 resolution. It supports SDI in/out and HDMI input.

RKM-270A

RKM-270A RKM-270A

Choice:

RKM

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Range Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom

Display Spec.

 Size  7"
 Resolution  1024 X 600 (16 : 9)
 Pixel Pitch  0.15mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  400cd/m2
 Contrast Ratio  800:1
 Display Area  154(H) x 90(V) mm
Input
 1 X BNC  Analog Input (Composite)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Output
Input Signal
 Analog  CVBS
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080P(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  Various Scan Modes,  Waveform/Vector,  Zoom
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
Dimensions

RKM-270A

Basic Accessory

AC Power Cord DC Power adapter2 Rack Mount Kit
  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download

[Release Notes]
Date : 18.08.01
RKM-270A-A1 [MCU Firmware Update : V0003 --> V0004]
1. Added a feature to set [Time Code] location.

Date : 17.02.07
RKM-270A-A1 [GPU Firmware Update : V0001 --> V0002]
1. Debugged the Key LED error.
