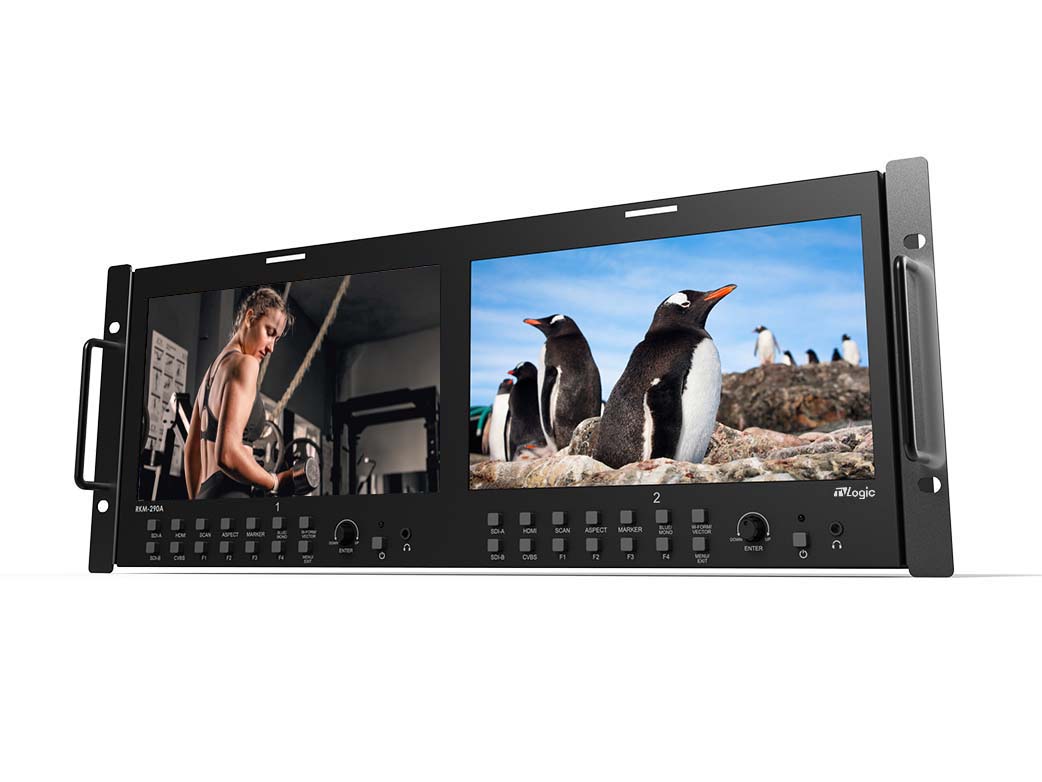

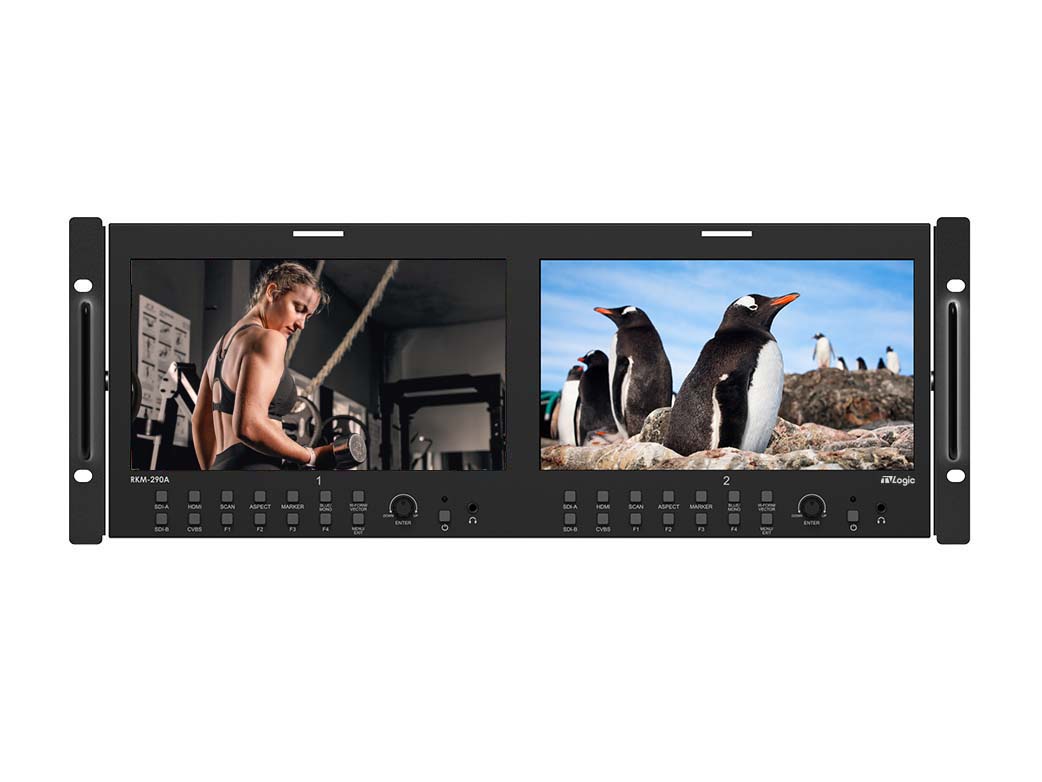

A rack-mount monitor with 2 × 9" LCD screens. which has the same high performance display as LVM-095W-N with full HD resolution and wide viewing angle capability. It supports SDI in/out and HDMI input.
A rack-mount monitor with 2 × 9" LCD screens. which has the same high performance display as
LVM-095W-N with full HD resolution and wide viewing angle capability.
It supports SDI in/out and HDMI input.
Main Body Dimensions
Main Body 439 x 168.5 x 47.4 (mm) / 17.28 x 6.63 x 1.87 (inch)
With Body 480.2 x 175 x 69.9 (mm) / 18.91 x 6.89 x 2.75 (inch)
Weight 4.9kg / 10.80lbs
• 9” 1920 x 1080 (16:9) Resolution
• Audio Level Meter Display
• H/V Delay
• Key Lock
• Luma(Y’) Zone Check
• Time Code Display
• User Aspect
• Various Scan Modes
• CC-608 LINE 21 / ANC, CC-708
1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
3G-SDI Level A/B
Supports 3G-SDI Level A/B input.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Luma(Y') Zone Check
Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Time Code Display
Displays the Timecode information on the screen.
Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
Adjusts the Width /Height display ratio.
Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono)
1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, Various Scan Modes, Waveform/Vector, Zoom
CC-608 ANC, CC-608 LINE 21, CC-708
Firmware update by USB memory stick
Ethernet Control support
[Release Notes] Date : 18.11.27
LVM-171A [GPU Firmware Update : V0006 -> V0007]
1. Added a feature to set [Time Code] location.
Date : 17.02.13
RKM-290A [MCU Firmware Update : V0005 --> V0006]
1. Debugged the Key LED error.
Date : 16.06.07
RKM-290A [MCU Firmware Update : V0004 --> V0005, CPU Firmware Update : V005 --> V006]
1. MCU and CPU (USB) firmware update due to adding Fan in the monitor Date : 16.04.22
RKM-290A [MCU Firmware Update : V0003 --> V0004]
1. Debugged the problem as in Romote control.
2. Debugged the problem of not operating Power off/on after tally on.
Date : 16.03.15
RKM-290A [MCU Firmware Update : V0002 --> V0003]
1. Added VCC Power Reset for Fuji TV
2. Added Soft Power On/Off and VCC Power On/Off
3. Added Remote (GPIO Remote) and Pin Power On/Off Operation Timer
4. Debugged NVRam Writing when power off
