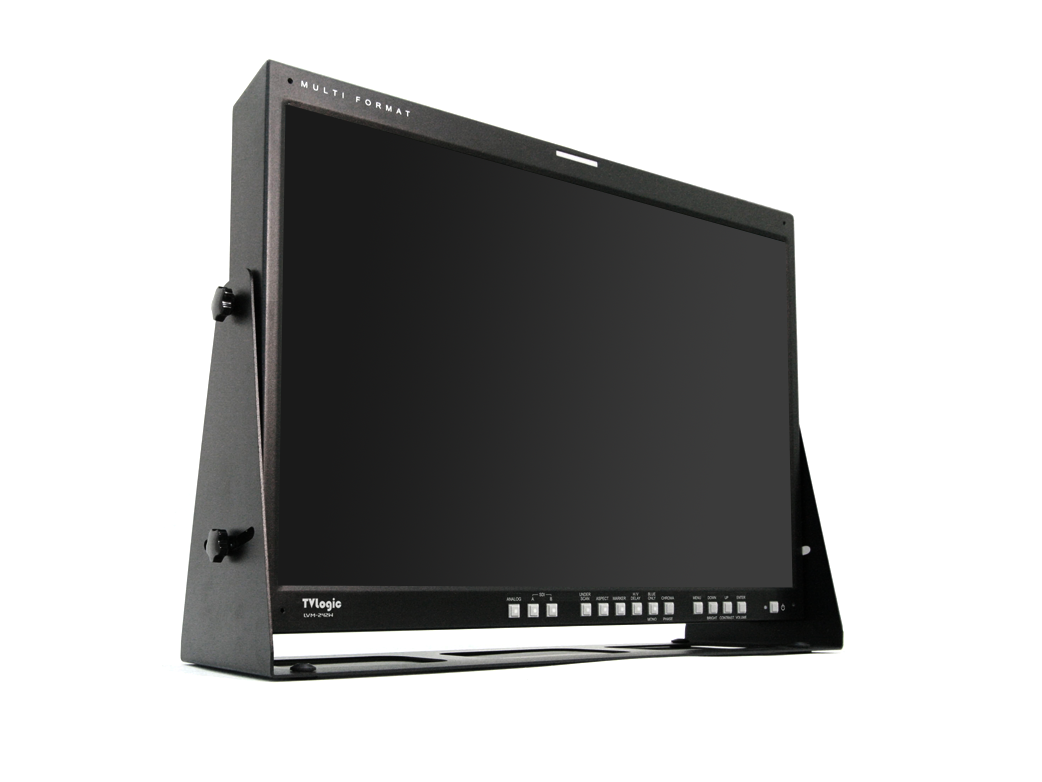

LVM-242W : 24” Full HD Display For Non-Critical Broadcast Monitoring Applications

The LVM-242W is a native 1920 x 1080 resolution display with advanced features like CC Decoding, Audio Level Metering, Timecode Display, and compatibility with the TVLogic automatic color alignment interface. Designed for non-critical viewing, the LVM-242W is an excellent and affordable solution for many broadcast and professional applications.
LVM-242W

LVM-242W

Product Highlights
• 24” 1920 x 1080 Native HD Resolution

• Matte Finish Panel
• 1:1 Pixel mapping modes for SD/HD
• Supports TVLogic Color Calibration Utility for proper
color alignment
• Waveform/Vectorscope
• Marker
• User Aspect
• Blue Only/Mono
• Key lock
• H/V Delay
• Timecode Display
• UMD support (ANC, Manual, Dynamic & User)
• Closed Caption : CEA- 608/708 (SDI), Line 21, ANC
• Monitor control using RS422



Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector
Display Spec

 Size  24"
 Resolution  1920 X 1200 (16 : 10)
 Pixel Pitch  0.270mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  400cd/m2
 Contrast Ratio  1000:1
 Display Area  518(H) x 324(V) mm
Input
 3 X BNC  Analog Input (Component)
 1 X DVI  DVI Input
Output
 3 X BNC  Analog Output (Component)
 1 X BNC  HD-SDI Output
Input Signal
SDI Input Signal Formats
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Marker,  Mono,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB
 Ethernet
Options
  Carrying Case,  ND Acrylic Filter,  Rack Mount Kit(Single),
Dimensions


552.5 x 389 x 95 (mm) / 21.75 x 15.31 x 3.74 (inch)

584 x 417 x 150 (mm) / 23.00 x 16.41 x 5.90 (inch)

10.4kg / 22.92lbs
