LVM-241S : 24” High-End LCD Monitor

The LVM-241S is our top QC-Grade 24” model with a 24 inch IPS LCD panel with 1920x1200 resolution, wide-gamut reproduction (up to DCI-P3), enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

LVM-241S

LVM-241S LVM-241S LVM-241S

Choice:

LVM-241S

HDR Emulation

A true HDR monitor needs to employ a special display panel with high dynamic range and wide color gamut, then needs to be calibrated for PQ and HLG. For example LUM-310X (dual layer LCD system) and LUM-310R (LCD with a local dimming backlight system) can reproduce peak luminance of 1,000nit and 2,000nit respectively and contrast ratio of 1,000,000 : 1. They also cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Camera Lut.Camera Lut.

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
Custom 3D LUT Import

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

PAP(Picture above Picture)

PAP displays two pictures vertically while PBP shows two pictures horizontally. PAP is specially designed for anamorphic images to maximize the size and resolution of the monitor screen.
PAP(Picture above Picture)PAP(Picture above Picture)

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.
PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)

Range Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Display Spec.

 Size  24"
 Resolution  1920 X 1200 (16:10)
 Pixel Pitch  0.27mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  400cd/m2
 Contrast Ratio  1500:1
 Display Area  518(H) x 324(V) mm
Input
 3 X BNC  Analog Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 3 X BNC  Analog(Loop Through Out)
 2 X BNC  SDI A/B Channel Output (Loop Through Out)
 External Output Port
Input Signal
 Analog  CVBS / S-Video / Component / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
 DVI Analog  640x480/720x400/800x600/1024x768/1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1366x768
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50)Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP),  Camera Lut.,  Picture by picture
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  Carrying Case,  External Acrylic Filter,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount

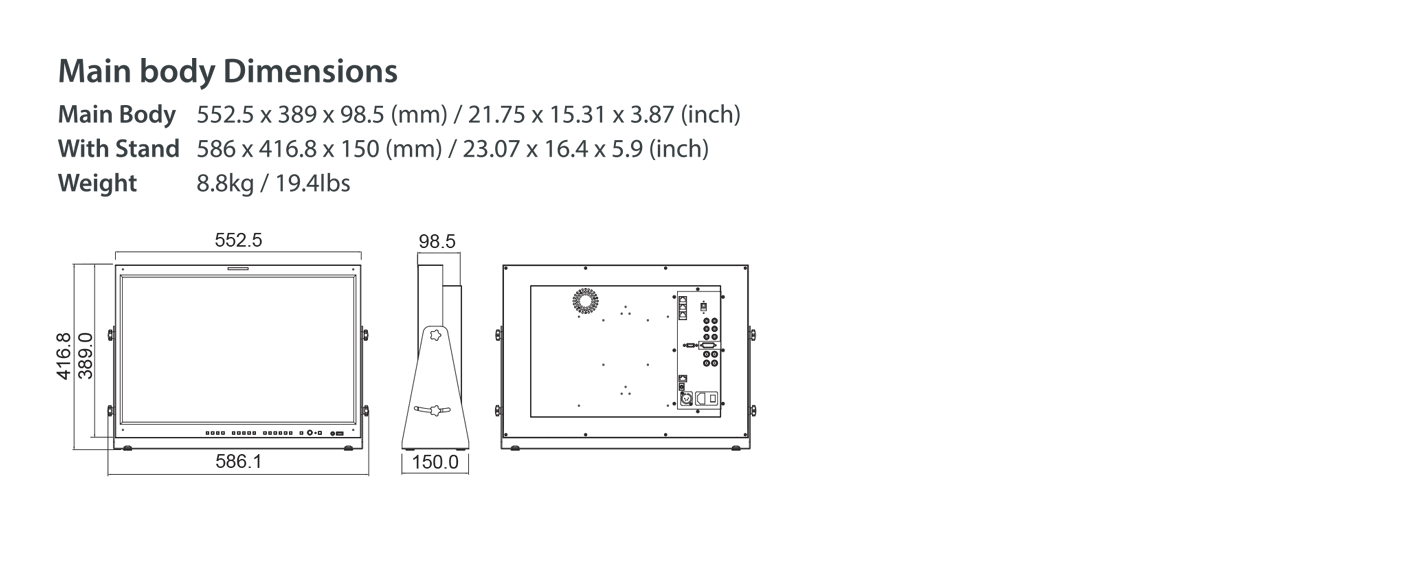

Dimensions

LVM-241S

Basic Accessory

AC Power Cord Stand-24 USB Cover

Optional Accessory

RMK-24 OPT-AND-24 V-Mount-250 V-Mount-250C AB-Mount-250(AP)G-Mount-250(EMEA) CC_24 CC_24D
  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download

[Release Notes]
Date: 20.01.07
[LVM-171S, 241S [ FPGA V01 -> 02 , Application Revision Update : V26 -> V30]
1. Supporting Euro Letter CC
2. Adding New feature: Key Lock
3. Adding New feature: OSD DISPLAY (OSD timer)
4. Adding New feature: Aspect mode
(ANAMORPHIC 1.3X, ANAMORPHIC 1.5X, ANAMORPHIC 2.0X)
5. Adding New feature: PBP Top Bottom mode (PBP4)

Date: 19.07.11
[LVM-171S, 241S [Application Revision Update : V21 -> V26]
1. Adding New feature: CC 608 (Anc/Line21)
2. Adding New feature: Custom 3D LUT function
3. Adding New feature: User Aspect function
4. Adding New feature: DCI 6500K (change to Gamma 2.2, 100nit, 6500K when selecting DCI 6500K,)
5. Adding New feature: Aspect mode (1.3:1, 1.65:1, 1.8:1, 2:1)
6. Adding New feature: Fucntion Key function (Custom LUT)
