LUM-313G : 31.1” True 4K Monitor with 12G-SDI&HDMI2.0

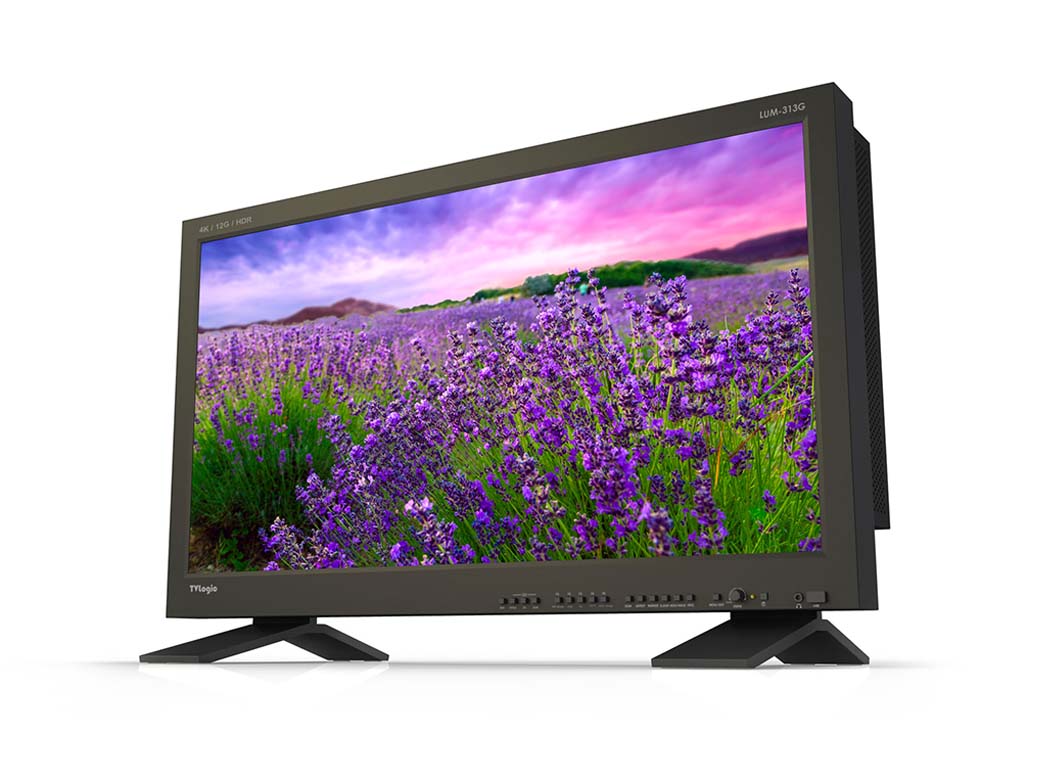

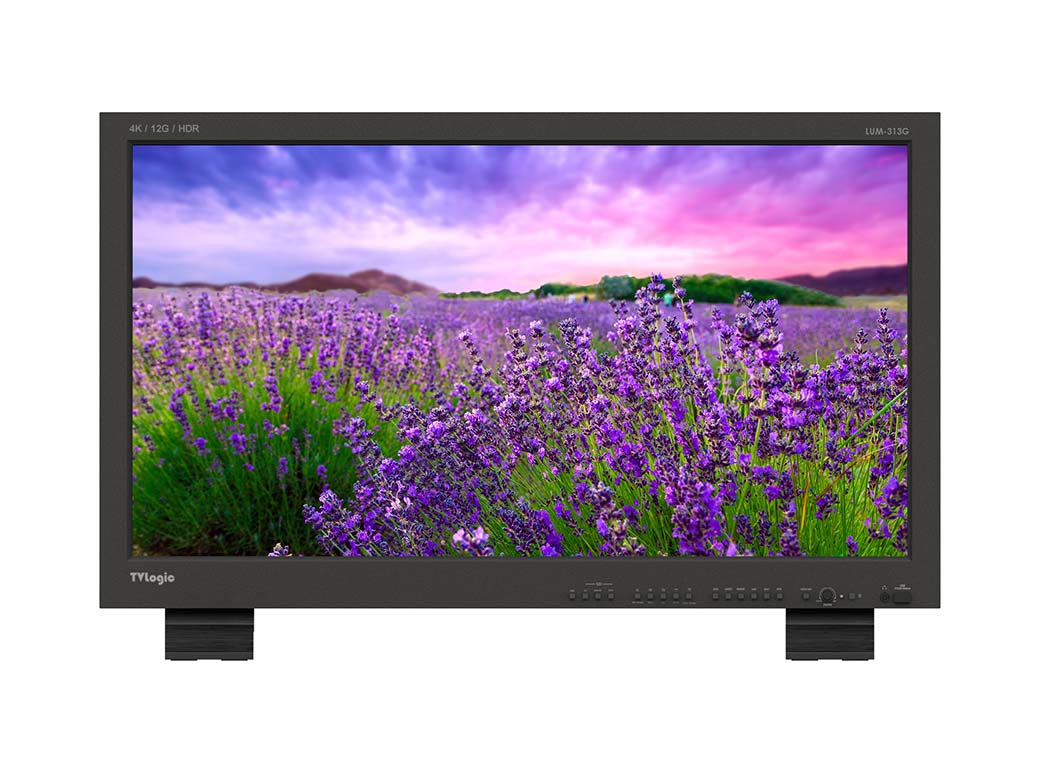

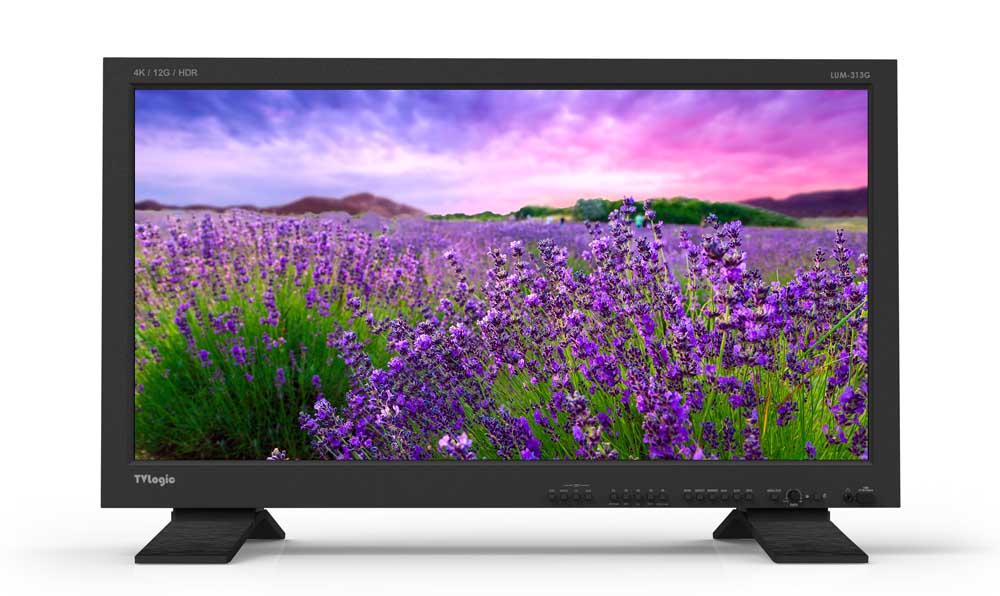

The LUM-313G is a 31.1" native 4K resolution(4096×2160) monitor with maximum luminance of 350nit, contrast ratio of 1500:1, wide color gamut and wide viewing angle. Equipped with 4 BNCs (2×12G-SDI + 2×3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-313G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3. More camera-specific HDR logs and gamuts will be supported by firmware update.

LUM-313G

LUM-313G LUM-313G LUM-313G

Choice:

LUM-313G

HDR Emulation

A true HDR monitor needs to employ a special display panel with high dynamic range and wide color gamut, then needs to be calibrated for PQ and HLG. For example LUM-310X (dual layer LCD system) and LUM-310R (LCD with a local dimming backlight system) can reproduce peak luminance of 1,000nit and 2,000nit respectively and contrast ratio of 1,000,000 : 1. They also cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Display Spec.

 Size  31.1"
 Resolution  4096 X 2160 (17:9)
 Pixel Pitch  0.1704mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  350cd/m2
 Contrast Ratio  1,500:1
 Display Area  698(H) x 368(V) mm
Input

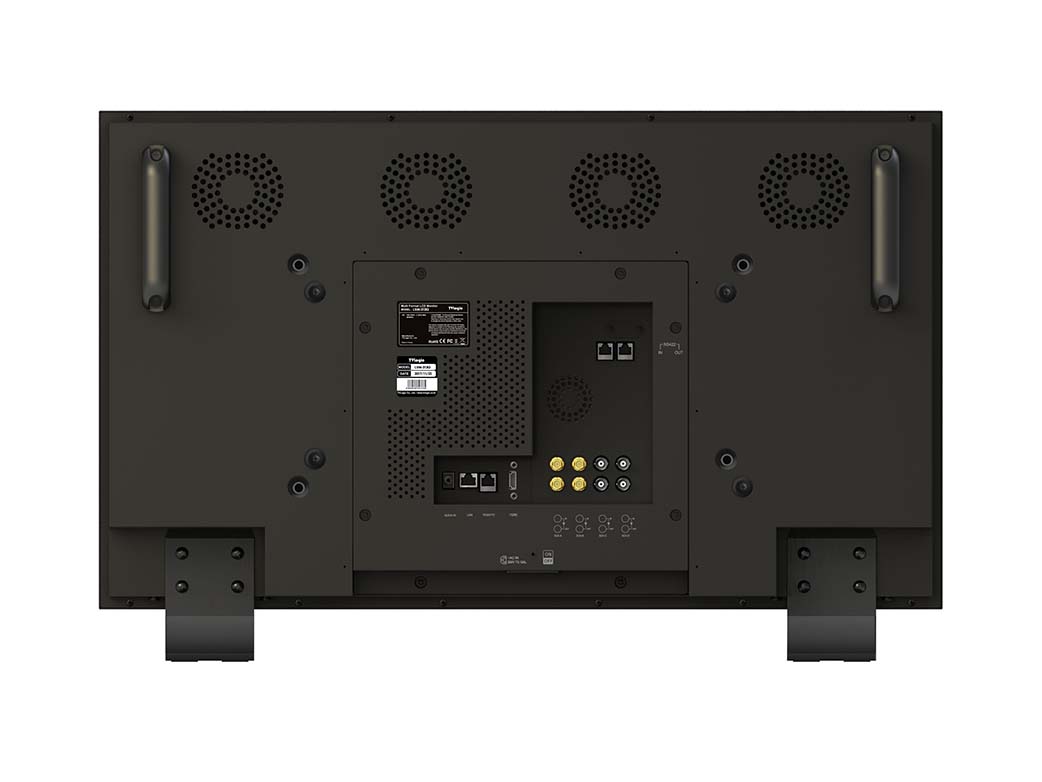

 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input
Output
 4 X BNC  12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)
Input Signal
 3G SDI  2.974Gbps
 12G SDI  11.880Gbps
 HD SDI  1.489Gbps
 HDMI  480p / 720p / 1080p / 2160p
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54)
 SMPTE 296  720p (60/59.94/54)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF)
 SMPTE 260  47.95/48/50/59.94/60p)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Marker,  Mono,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  SingleMode
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  Carrying Case,
Dimensions

LUM-313G


Basic Accessory

AC Power Cord USB Cover

Optional Accessory

CC-310R
  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download

[Release Notes]
Date : 19.11.14
[LUM-313G [CPU Firmware Update : V002_18R -> V005 / GPU V02_09R -> V03 / FPGA V36 -> V47 ]
1. Supporting CC (608Line21, 608ANC, 708)
2. Adding OSD Position

Date : 18.08.03
[LUM-313G [CPU Firmware Update : V5 -> V18 / GPU V02 -> V09 / FPGA V27 -> V36 ]
1. Improved HDR features
2. Improved by Dolby and Netflix test
- When you set 100nit or 200nit as in SDR or HDR, the nit will be shown as it is.
- When the monitor is set [Local Dimming] ?[Off], the set luminance from 100nit to 1,000nit. If you increase peak luminance, ABL will be automatically activated and it will make backlight level down. After 30 min, backlight will be 1,000nit.
- Highlight was not reproduced well but now it is fixed.
- Peak luminance of Local Dimming (Strong) is 2,000nit as in 4% of white box. More than 2,000nit part of a video will be displayed but ABL will be activated. And, it is going to be 1,000nit.
- Peak luminance of Local Dimming (Soft) is 2,000nit as in 49% of white box.
- Preset value as in Standard is changed.
- Video range setting value is changed. Narrow 100% and Narrow 109% are added in Video Range setting. Preset of HD, UHD, and HLG is changed as 109%.
