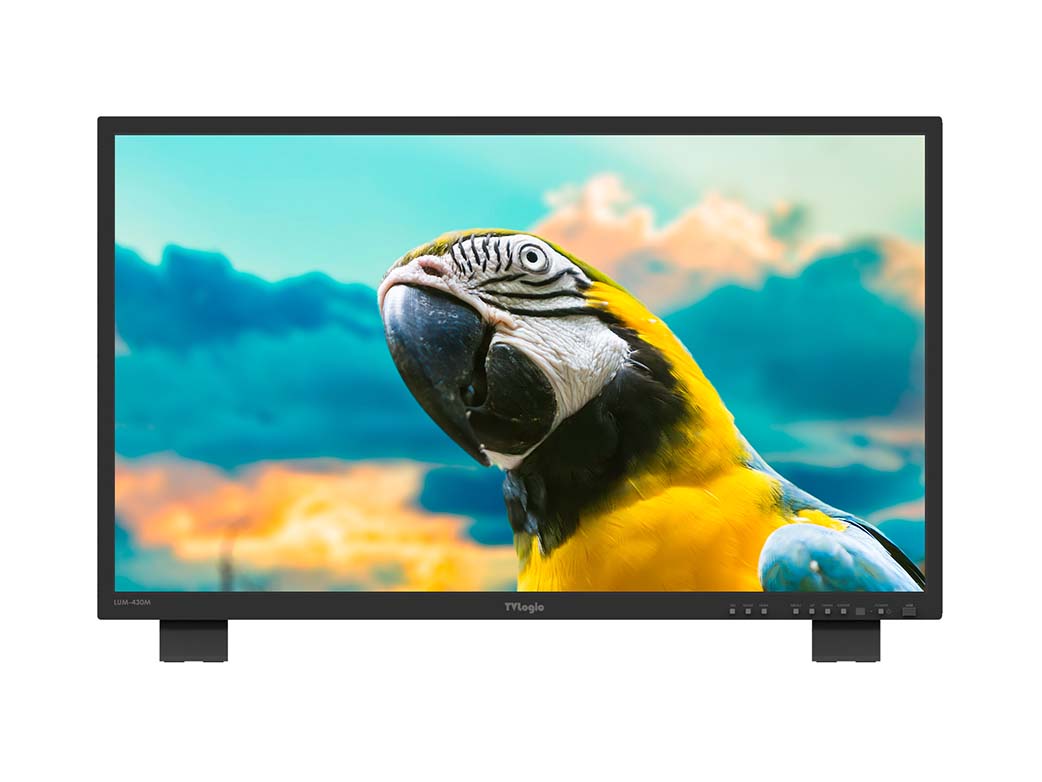

LUM-430M : 42.5” UHD 12G-SDI Monitor

The LUM-430M is a 4K/UHD monitor with a 42.5" True UHD(3840x2160) resolution and True 10-bit drivers. It supports 12G/6G/3G-SDI inputs and an HDMI 2.0 input
LUM-430M

LUM-430M LUM-430M LUM-430M

Choice:

LUM-430M

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display
Display Spec.

 Size  42.5"
 Resolution  3840 X 2160 (16:9)
 Pixel Pitch  0.245mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  350cd/m2
 Contrast Ratio  1,000 : 1
 Display Area  962(H) x 554.8(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input (HDMI 2.0)
Output
 1 X BNC  12G/3G/HD/SD SDI Output 1Ch (SDI A/B Selected channel output)
12G Mode : 3840x2160 60p/59.94p/50p
Input Signal
 Analog  X
 3G SDI  O
 12G SDI  X
 HD SDI  O
 SD SDI  X
 HDMI  O
 DVI Analog  X
 DVI DP  X
 DVI DH  X
SDI Input Signal Formats
 SMPTE 2082  X
 SMPTE 2081  X
 SMPTE 425-5  O
 SMPTE 425M-A/B  O
 SMPTE 372  X
 SMPTE 296  O
 SMPTE 274  O
 SMPTE 260  X
 SMPTE 259  O
 SMPTE 125  X
 SMPTE ST2082 10 Mode1  O
 SMPTE ST2081 10 Mode1  O
 ITU-R BT.656  X
 2K Format  X
Audio
 Audio In  SDI Embedded Audio (Group, Ch Selectable)
 Audio Out  External Output Port (3.5m Phone Jack)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Marker,  Time Code Display
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility
Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  Carrying Case,
Dimensions

LUM-430M


Basic Accessory

AC Power Cord USB Cover ST-Stand IR Remote

[Release Notes]
Date : 18.08.01
LUM-430M [CPU Firmware Update : -> ]
LUM-430M [FPGA Firmware Update : V02 -> V03]
1. Debugged [Timecode] error in Adobe Premiere
