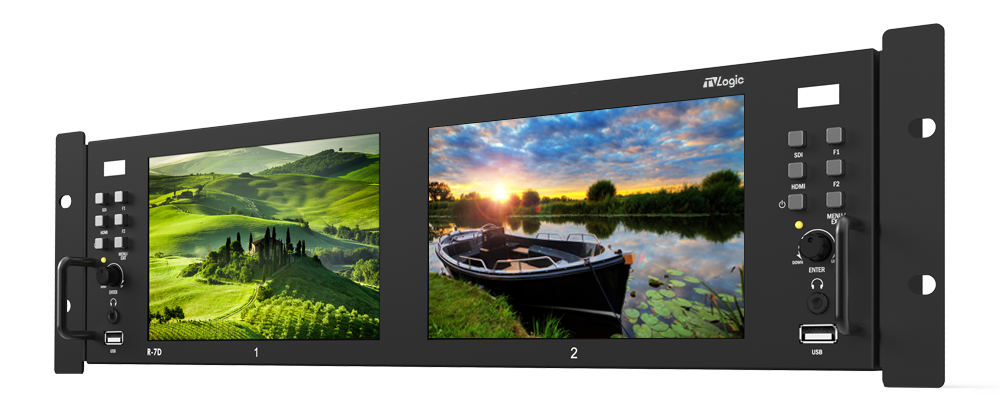

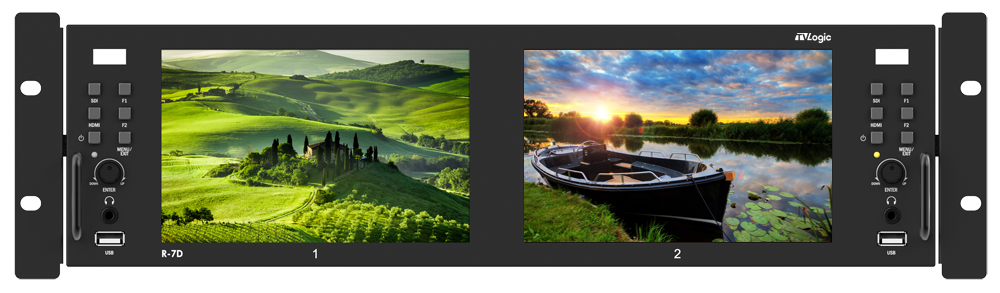

R-7D : 12G-SDI Supported Dual 7"’ Full HD Rack Mount Monitor
A rack-mount monitor with 2 × 7" LCD screens, which has the same high performance display as RMK-270A with 12G-SDI in/out.
12G-SDI Supported Dual 7"’ Full HD Rack Mount Monitor
A rack-mount monitor with 2 × 7" LCD screens, which has the same high performance display as
RMK-270A with 12G-SDI in/out.
Main Body Dimensions
Main Body 430 x 132 x 50.5 (mm) / 16.93 x 4.72 x 1.99 (inch)
With Rack Mount Kit 480.8 x 132 x 73 (mm) / 18.92 x 5.19 x 2.87 (inch)
Weight 2.46Kg / 5.42Ibs
Product Highlights
• 2 × 7” Full HD LCD Screen
• 12G/6G/3G-SDI Input & Output
• HDR Emulation (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Marker
• Dynamic UMD
• Timecode Display
• Luma(Y’) Zone Check
• Focus Assist
• 1:1 Scan / Zoom
• Blue/Mono Only
• Luma(Y") Zone Check
• H/V Delay
• Tally
