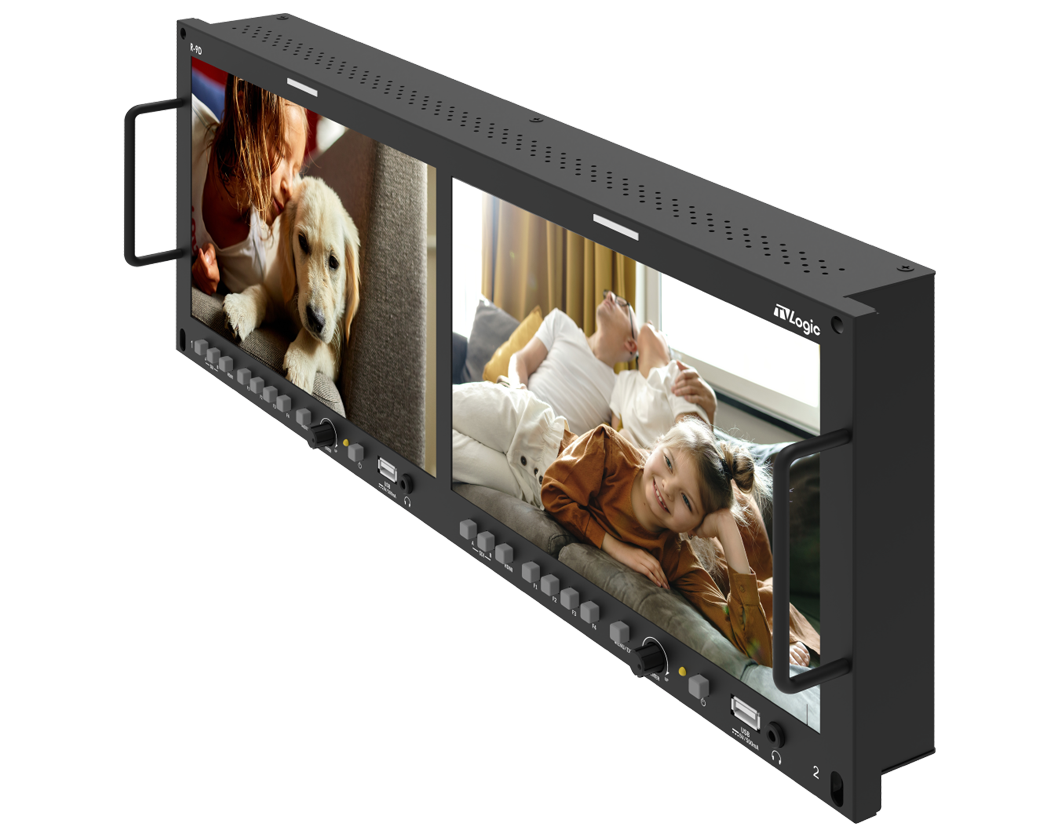

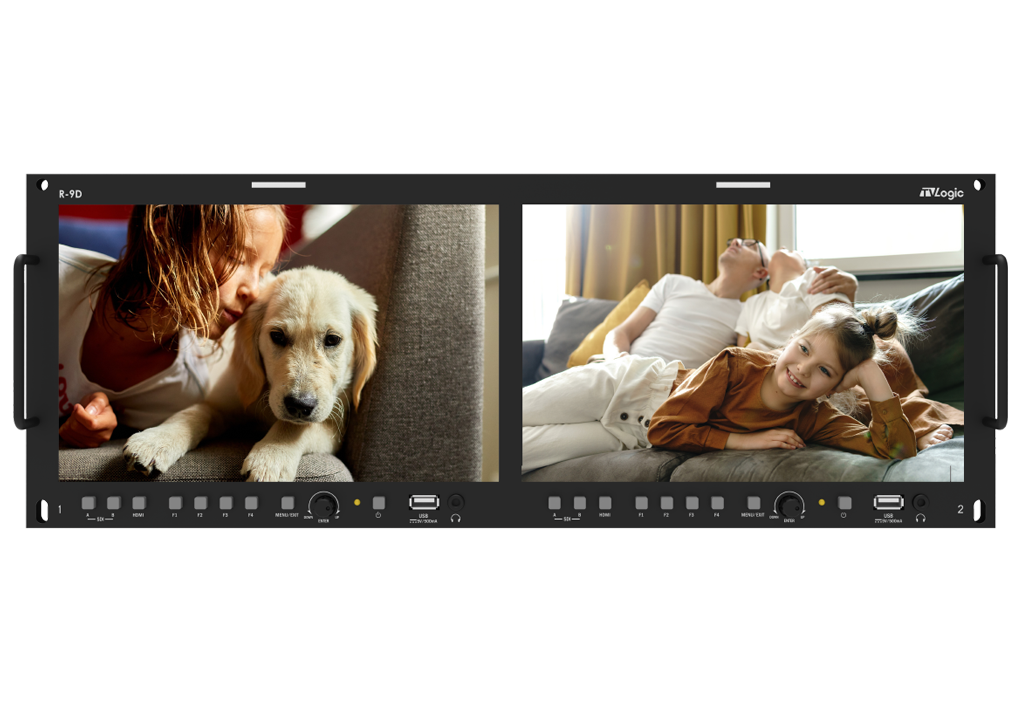

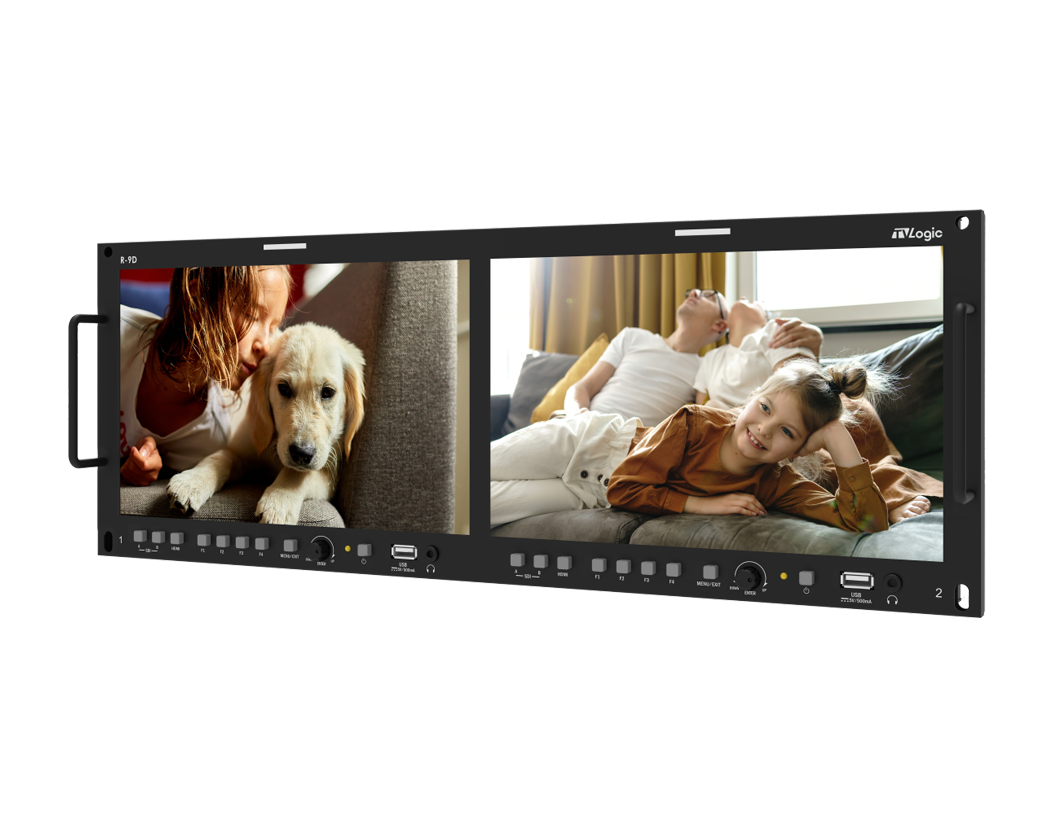

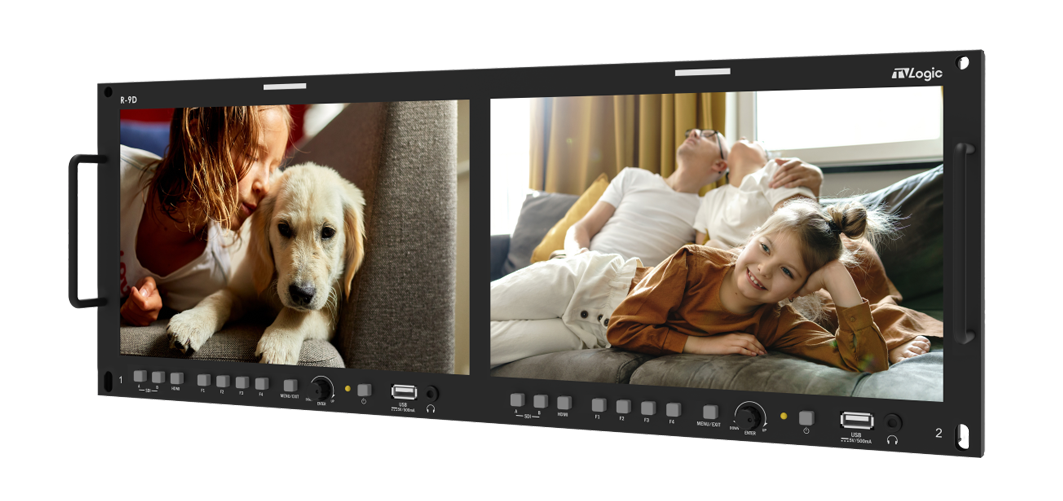

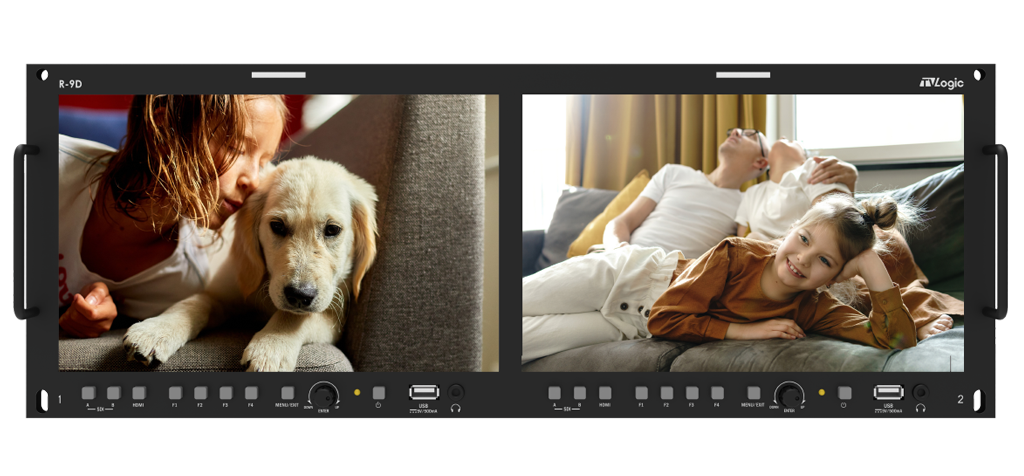

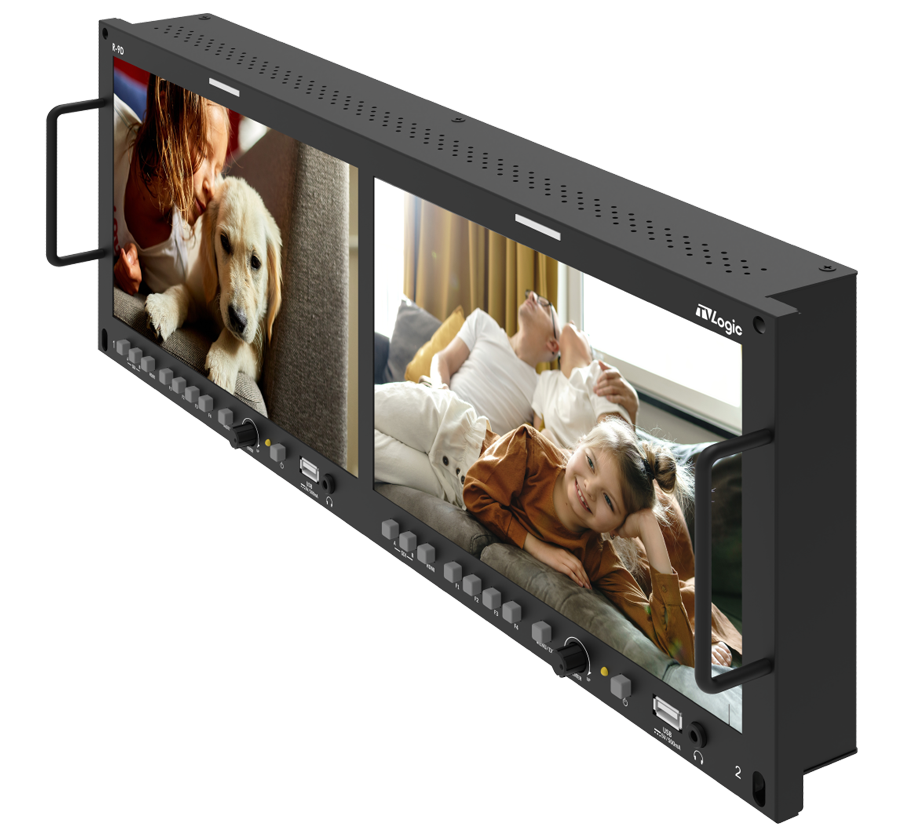

R-9D : Dual 10.1” 12G-SDI 4RU Rack-Mount Monitor
The R-9D integrates dual 10.1" LCD screens and 12G-SDI into a compact rack-mounted unit, delivering dependable monitoring of multiple video sources while maximizing operational efficiency and valuable rack space.
Dual 10.1” 12G-SDI 4RU Rack-Mount Monitor
Featuring two high-resolution 10.1" LCD displays and 12G-SDI In/Out, the R-9D provides reliable multi-channel video monitoring in a space-efficient rack-mounted design for broadcast, production, and other professional applications.
Main Body Dimensions
Main Body 481 x 175.8 x 49.5 (mm) / 18.93 x 6.92 x 1.94 (inch)
With Handle 481 x 175.8 x 77 (mm) / 18.93 x 6.92 x 3.03 (inch)
Weight 2.95Kg / 6.50Ibs
Product Highlights
• 2 × 10.1” Full HD LCD Screen
• 12G/6G/3G-SDI Input & Output
• HDR Emulation (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Marker
• Closed Caption (CC-608, CC-708 / English, Spanish)
• Dynamic UMD
• Timecode Display
• Luma(Y’) Zone Check
• Focus Assist
• 1:1 Scan / Zoom
• Blue/Mono Only
• Luma(Y") Zone Check
• H/V Delay
• Tally
