LQM-241W : Available while suppies last
24” 1920 x 1080 Native HD LCD Quad Split Display The LQM-241W is a high quality 24 inch Quad-Split Monitor sharing a majority of the advanced functionality found in the LVM-243W. The LQM- 241W supports 4 HD/SD-SDI inputs at a time in quad split mode and can also display any additional sources full screen or as one of the Quad Split Windows. The LQM-241W also features 4 HD/SD-SDI outputs as well as hosting advanced Waveform and Vectorscope functions.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Closed caption
Closed caption.
Marker
Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Time Code Display
Displays the Timecode information on the screen.
UMD
Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Display Spec
Input
Output
Input Signal
SDI Input Signal Formats
Audio
FPGA Functions
Closed Caption
Calibration
Other Functions
Options
Dimensions
| Size | 24" |
| Resolution | 1920 X 1200 (16 : 10) |
| Pixel Pitch | 0.270mm |
| Color Depth | 16.7M |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 300cd/m2 |
| Contrast Ratio | 1000:1 |
| Display Area | 518(H) x 324(V) mm |
| 1 X BNC | Analog Input (Composite) |
| 3 X BNC | Analog Input (Component) |
| 4 X BNC | HD SDI A/B/C/D Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
| 1 X BNC | Analog Output (Composite) |
| 3 X BNC | Analog Output (Component) |
| 4 X BNC | HD SDI A/B/C/D Channel Output |
| Analog | CVBS / S-Video / Component Video / RGB(D-TV) |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA / IBM Modes |
| DVI Analog | 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024 |
| DVI DP | 640x480/720x400/800x600/1024x768/1280x768/ 1280x1024/1600x1200/1920x1200/1920x1080 |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
| 1:1 Pixel Mapping Modes for SD/HD, Audio Level Meter Display, Blue Only, H/V Delay, Key Lock, Marker, Mono, Time Code Display, UMD, Various Scan Modes, Waveform/Vector |
| CC-608 ANC, CC-608 LINE 21, CC-708 |
| TVLogic Color Calibration Utility |
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet |
| Carrying Case, ND Acrylic Filter, Rack Mount Kit(Single), |

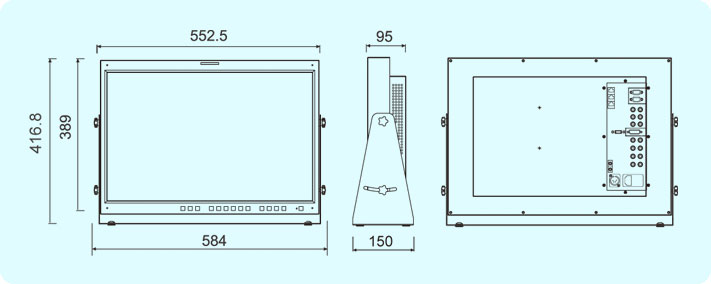

- Main Body : 552.5 x 389 x 95 (mm) / 21.75 x 15.31 x 3.74 (inch)
- With stand : 584 x 416.8 x 150 (mm) / 23 x 16.4 x 5.9 (inch)
- Weight : 11kg / 24.25lbs
