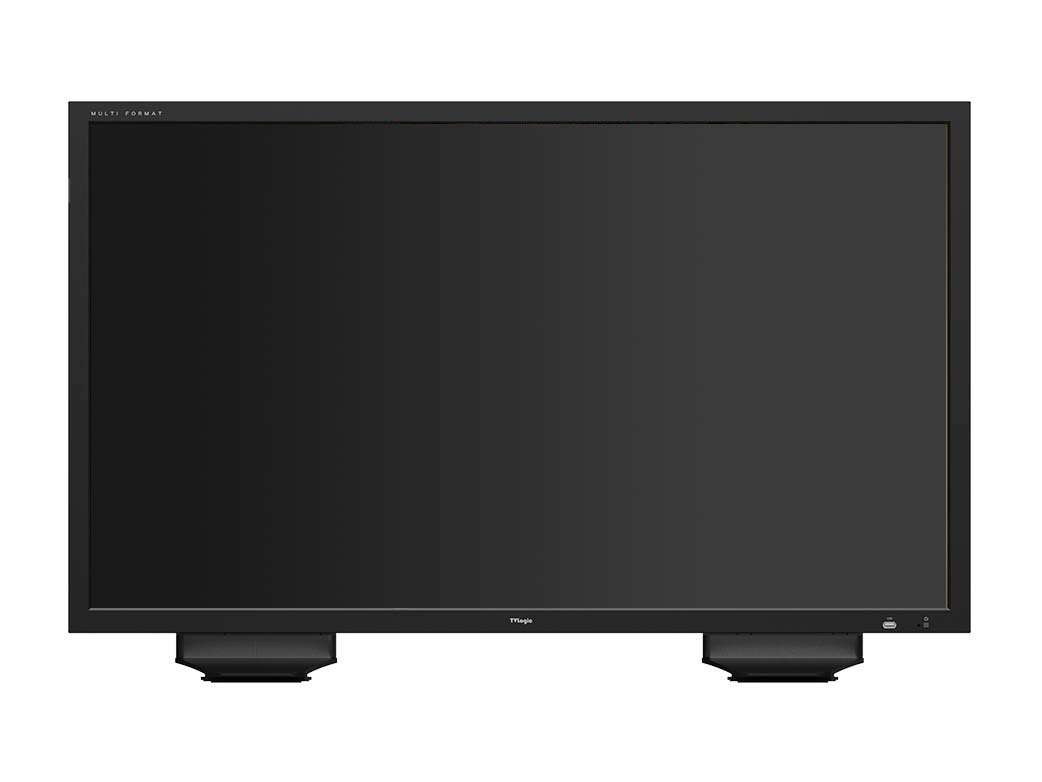

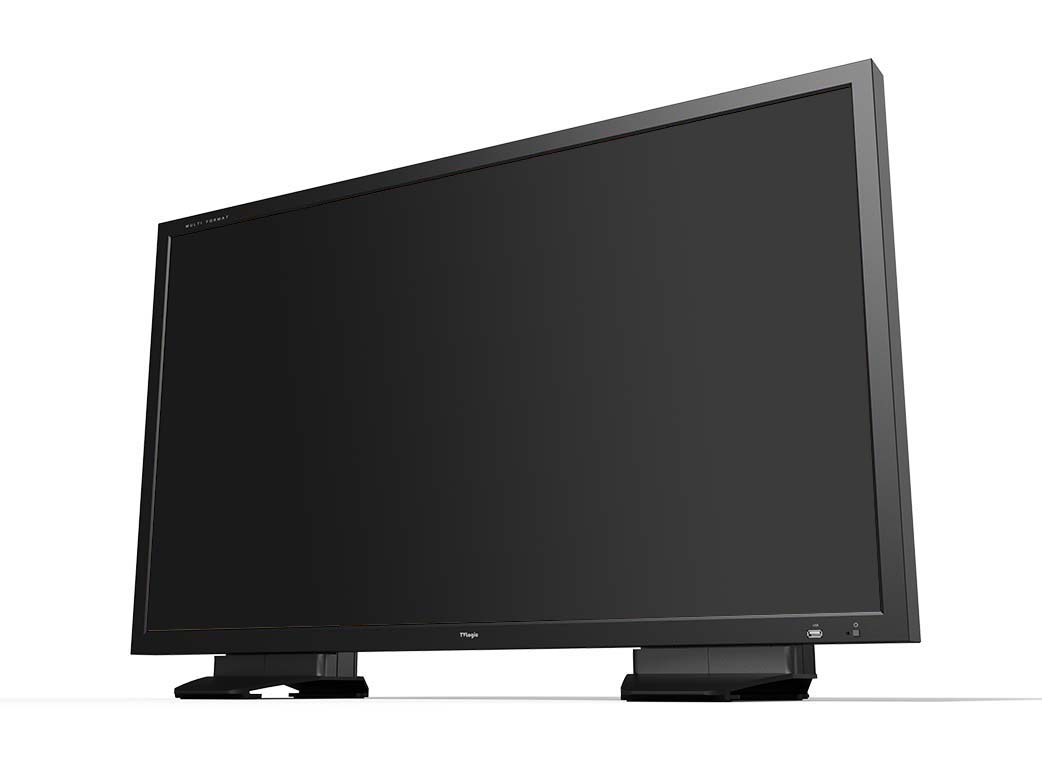

Display Spec

Size	46"
Resolution	1920 X 1080 (16 : 9)
Pixel Pitch	0.53mm
Color Depth	1.07B
Viewing Angle	178°(H) / 178°(V)
Luminance	500cd/m2
Contrast Ratio	4000:1
Display Area	1018(H) x 573(V) mm

Input

2 X BNC	3G-SDI A/B Channel Input
1 X HDMI	HDMI Input
1 X DVI	DVI Input
1 X SFP Module	SFP Module Input(Optional)

Output

2 X BNC

3G-SDI A/B Channel Output

Input Signal

3G SDI	2.970Gbps
HD SDI	1.485Gbps
SD SDI	270Mbps
HDMI	480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 640×480 / 720×400 / 800×600 / 1024×768 / 1280×1024 / 1600×1200
DVI DP	640×480/720×400/800×600/1024×768/ 1280×1024/1366×768/1600×1200/1920×1200
DVI DH	1080p(24/25/30/50/60)/1080i(50/60)/720p (50/60)/480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats

SMPTE 425M-A/B	1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
SMPTE 372	Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
SMPTE 296	720p (60/59.94/50)
SMPTE 274	1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260	1035i (60/59.94)
SMPTE 125	480i (59.94)
ITU-R BT.656	576i (50)
2K Format	2048 x 1080p (24/24sF/23.98/23.98sF)

Audio

Audio Out

-

FPGA Functions

,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Marker,  Mono,  Time Code Display,  UMD,  User Aspect

Closed Caption

CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47

Calibration Other Functions

USB	Firmware update by USB memory stick
Ethernet	Ethernet Control support

Options

Stand,  Carrying Case,

Dimensions

Basic Accessory

Optional Accessory

[Release Notes]
Date : 16.01.21
[SWM Series] [CPU Update : 0.06 -> 0.07] [FPGA update : 02 -> 03] [AM1808 Update : 1114 -> 1115]
- Added to support 4K PID signal on SWM series.
- Added progress OSD while Auto Calibration.
- Debugged error LUT when calibrating SWM series with Specbos 1211 Jeti Probe.
- Reduced time when calibrating SWM series with K10 probe.
- Debugged error when calibrating backlight of SWM series.
- Debugged even and odd error when fed interlace format on Fast mode.

Date : 15.09.22
[SWM Series] [CPU Update : 0.04 -> 0.05] [AM1808 Update : 1112 -> 1113]
- Debugged periodically no video after replacing SB-203 with SB-204 of SWM-170A.
- Debugged USB upgrade problem which is not done.

Date : 14.08.17
[SWM Series] [CPU Update : 0.03 -> 0.04]
- Debugged Observer control regarding power on/off in Observer software.
Date : 14.08.04
[SWM Series] [FPGA Update 01 -> 02][CPU Update : 0.02 -> 0.03] [VXP Update : 001 -> 002] [AM1808 Update : 1111 -> 1112]
- Debugged noise on OSD menu when turning On and Off.
- Debugged screen noise.
- Revised not to change [User Config Set] when [Set Default].
- Added CA-210.
- Debugged Auto Cal.
- Debugged to be incorrect value of K-10 Probe operating Measure Mode.
- Debugged to show correct channel of CA-210.
- Debugged initialized problem by a USB Stick.
