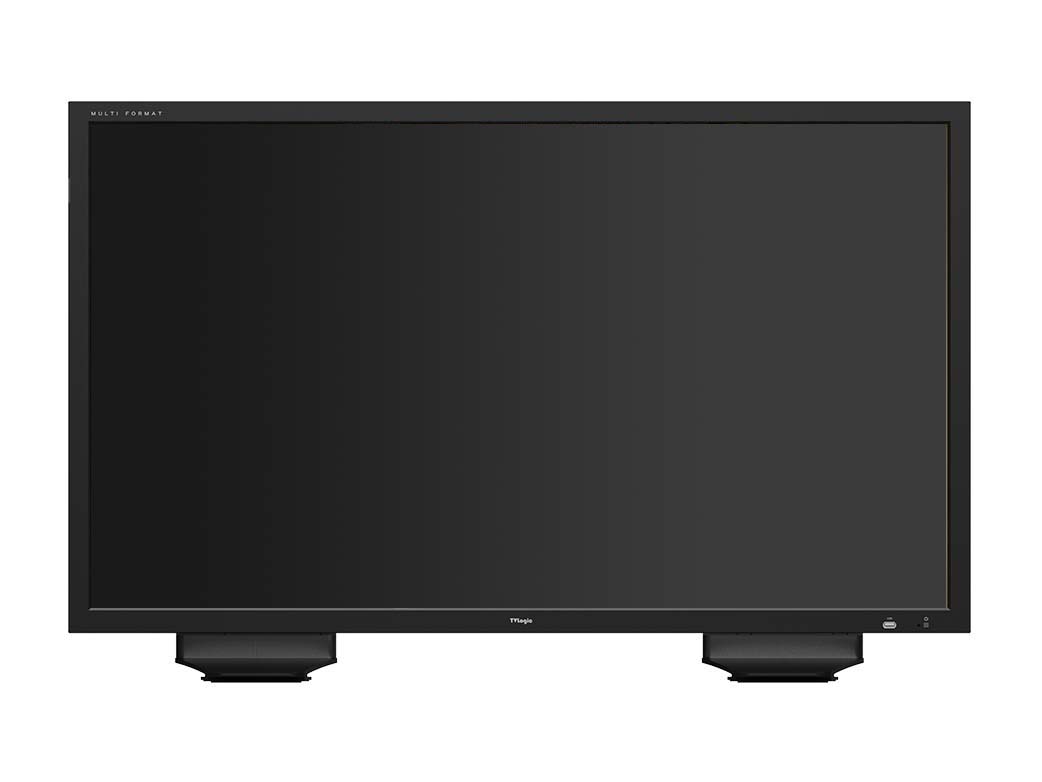

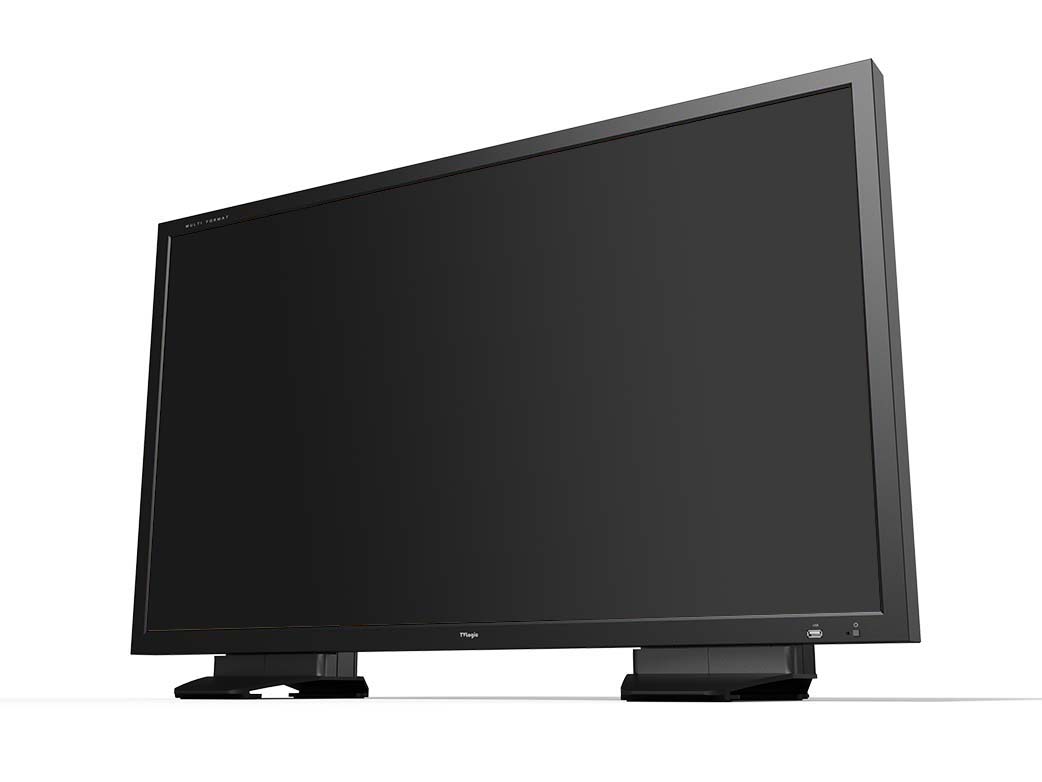

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Closed caption

Closed caption.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Time Code Display

Displays the Timecode information on the screen.

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.

User Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Display Spec

Size	54.6"
Resolution	1920 X 1080 (16 : 9)
Pixel Pitch	0.63mm
Color Depth	1.07B
Viewing Angle	178°(H) / 178°(V)
Luminance	450cd/m2
Contrast Ratio	4000:1
Display Area	1209.6(H) x 680.4(V) mm

Input

2 X BNC	3G-SDI A/B Channel Input
1 X HDMI	HDMI Input
1 X DVI	DVI Input
1 X SFP Module	Optical Input(Option)

Output

2 X BNC

3G-SDI A/B Channel Output

Input Signal

3G SDI	2.970Gbps
HD SDI	1.485Gbps
SD SDI	270Mbps
HDMI	480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 640×480 / 720×400 / 800×600 / 1024×768 / 1280×1024 / 1600×1200
DVI DP	640×480/720×400/800×600/1024×768/ 1280×1024/1366×768/1600×1200/1920×1200
DVI DH	1080p(24/25/30/50/60)/1080i(50/60)/720p (50/60)/480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats

SMPTE 425M-A/B	1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
SMPTE 372	Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
SMPTE 296	720p (60/59.94/50)
SMPTE 274	1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260	1035i (60/59.94)
SMPTE 125	480i (59.94)
ITU-R BT.656	576i (50)
2K Format	2048 x 1080p (24/24sF/23.98/23.98sF)

Audio

Audio Out

-

FPGA Functions

,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Marker,  Mono,  Time Code Display,  UMD,  User Aspect

Closed Caption

CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47

Calibration Other Functions

USB	Firmware update by USB memory stick
Ethernet	Ethernet Control support

Options

Stand,  Optic Module ,

Dimensions

Basic Accessory

Optional Accessory

[Release Notes]
Date : 16.01.21
[SWM Series] [CPU Update : 0.06 -> 0.07] [FPGA update : 02 -> 03] [AM1808 Update : 1114 -> 1115]
- Added to support 4K PID signal on SWM series.
- Added progress OSD while Auto Calibration.
- Debugged error LUT when calibrating SWM series with Specbos 1211 Jeti Probe.
- Reduced time when calibrating SWM series with K10 probe.
- Debugged error when calibrating backlight of SWM series.
- Debugged even and odd error when fed interlace format on Fast mode.

Date : 15.09.22
[SWM Series] [CPU Update : 0.04 -> 0.05] [AM1808 Update : 1112 -> 1113]
- Debugged periodically no video after replacing SB-203 with SB-204 of SWM-170A.
- Debugged USB upgrade problem which is not done.

Date : 14.08.17
[SWM Series] [CPU Update : 0.03 -> 0.04]
- Debugged Observer control regarding power on/off in Observer software.
Date : 14.08.04
[SWM Series] [FPGA Update 01 -> 02][CPU Update : 0.02 -> 0.03] [VXP Update : 001 -> 002] [AM1808 Update : 1111 -> 1112]
- Debugged noise on OSD menu when turning On and Off.
- Debugged screen noise.
- Revised not to change [User Config Set] when [Set Default].
- Added CA-210.
- Debugged Auto Cal.
- Debugged to be incorrect value of K-10 Probe operating Measure Mode.
- Debugged to show correct channel of CA-210.
- Debugged initialized problem by a USB Stick.
