3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.

User Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Zoom

Magnifies the input signal from 0% to 90%.

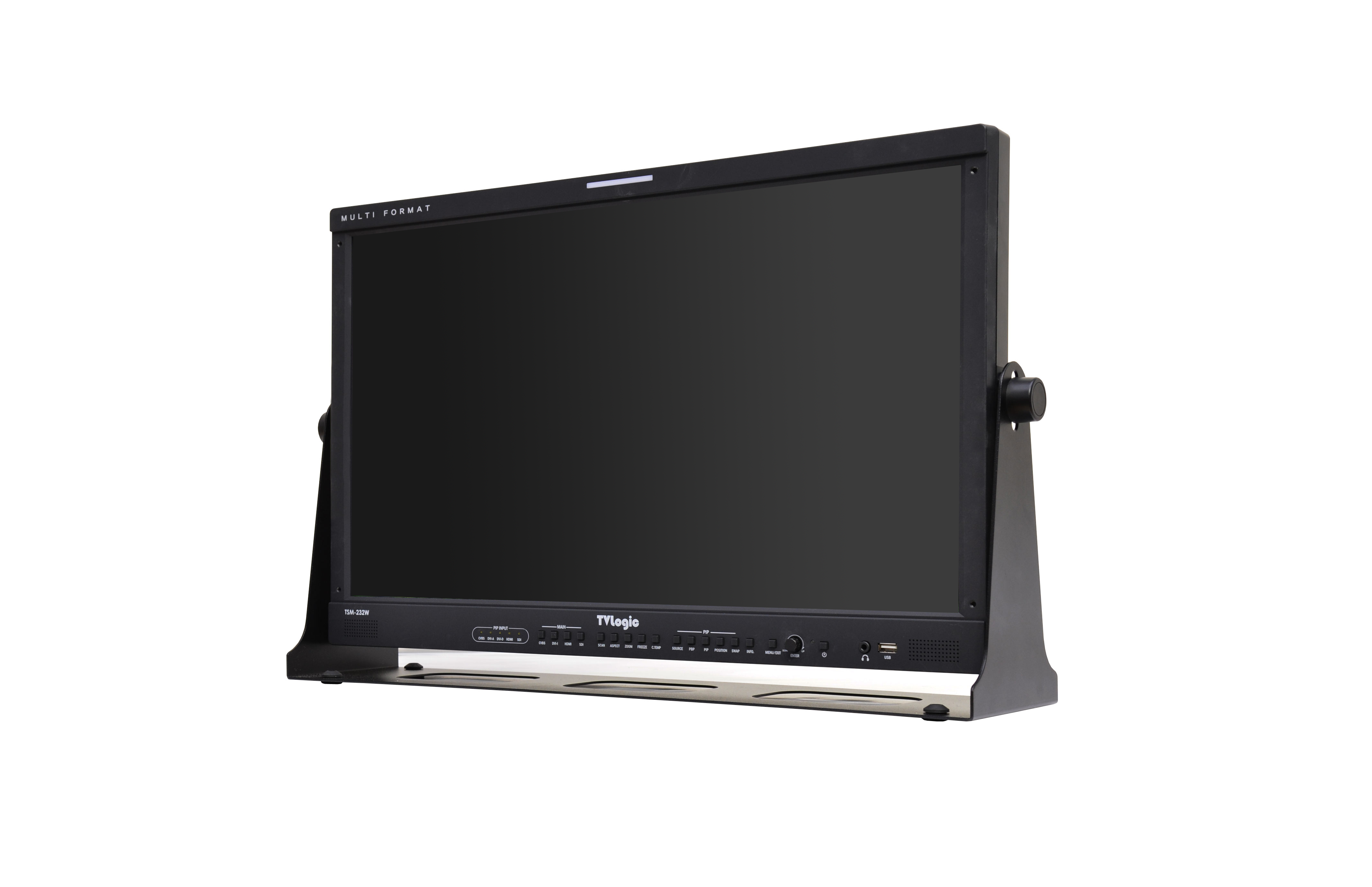

Display Spec

Size	23"
Resolution	1920 X 1080 (16 : 9)
Pixel Pitch	0.2652 mm
Color Depth	16.7M
Viewing Angle	178°(H) / 178°(V)
Luminance	300cd/m2
Contrast Ratio	1000:1
Display Area	509(H) x 286(V)

Input

1 X BNC	Analog Input (Composite)
1 X BNC	3G-SDI A Channel Input
1 X D-SUB	RGBHV (VGA) IN
1 X HDMI	HDMI Input
1 X DVI	DVI Input

Output

1 X BNC	Analog Output (Composite)
1 X BNC	3G-SDI Output

Input Signal SDI Input Signal Formats Audio

Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	Analog Stereo (Phone Jack), Internal Speaker(Stereo)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Key Lock,  User Aspect,  Various Scan Modes,  Zoom

Closed Caption Calibration Other Functions

REMOTE	TVLogic’s specification
USB	Firmware update by USB memory stick
Ethernet

Options

ND Acrylic Filter,  Rack Mount Kit(Single),

Dimensions
